FH26W-39S-0.3SHW(60) COUNTRY OF ORIGIN
|
FH26W-39S-0.3SHW(60) PARAMETRIC INFO
|
FH26W-39S-0.3SHW(60) PACKAGE INFO
|
FH26W-39S-0.3SHW(60) MANUFACTURING INFO
|

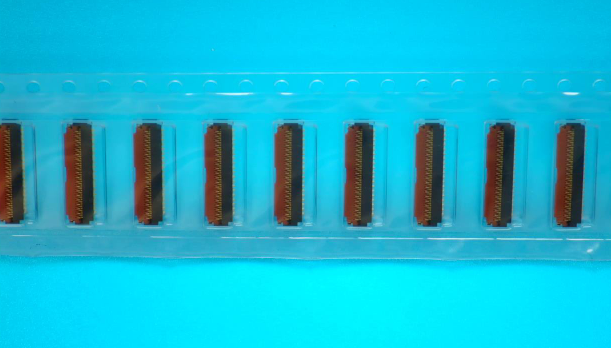

FH26W-39S-0.3SHW(60) PACKAGING INFO
|

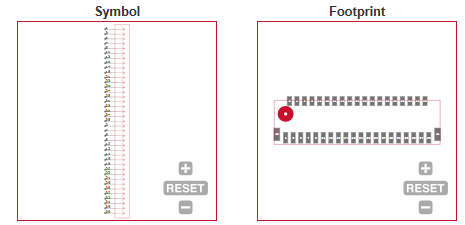

FH26W-39S-0.3SHW(60) ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Japan
|
|
PARAMETRIC INFO
|
| Type |
FPC Connector |
| Contact Gender |
RCP |
| Number of Contacts |
39 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
0.2 |
| Maximum Voltage Rating |
30VDC|30VAC |
| Housing Material |
Liquid Crystal Polymer |
| Housing Color |
Black |
| Contact Material |
Phosphor Bronze |
| Contact Plating |
Gold |
| Number of Rows |
1 |
| Maximum Contact Resistance (mOhm) |
100 |
| Insulation Resistance (MOhm) |
50 |
| Operating Temperature (°C) |
-55 to 85 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
85 |
| Mating Cycle (Cycles) |
10 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
0.3 |
| Body Orientation |
Right Angle |
| Mounting |
Surface Mount |
| Product Length (mm) |
13.2 |
| Product Depth (mm) |
3.5 |
| Product Height (mm) |
1 |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
N/A |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Ni |
| Terminal Base Material |
Phosphor-Bronze |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
|
|
|
ECAD MODELS
|
|
|
