• Dual conductor, two-turn construction
|
• Magnetically shielded
|
• 8.3 mm x 7.5 mm footprint surface mount package in a 5.35 mm height
|
• Ferrite core material
|
|
| CATALOG |
FPT705-200-R COUNTRY OF ORIGIN
|
FPT705-200-R PARAMETRIC INFO
|
FPT705-200-R PACKAGE INFO
|
FPT705-200-R MANUFACTURING INFO
|
FPT705-200-R PACKAGING INFO
|
FPT705-200-R ECAD MODELS
|
FPT705-200-R APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Philippines
|
|
PARAMETRIC INFO
|
| Type |
Power |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Ferrite |
| Inductance (H) |
0.2u(OCL)/0.18u |
| Tolerance |
10% |
| Inductance Test Frequency (Hz) |
1M |
| Maximum DC Current (A) |
13 |
| Maximum Saturation Current (A) |
25 |
| Maximum DC Resistance (Ohm) |
0.00065(Typ) |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Operating Temperature (°C) |
-55 to 125 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Case Size |
N/A |
| Maximum Product Length (mm) |
8.3 |
| Maximum Product Depth (mm) |
7.5 |
| Maximum Product Height (mm) |
5.35 |
| Maximum Product Diameter (mm) |
N/R |
| Number of Terminals |
4 |
| Product Weight (g) |
1.04 |
| Terminal Pitch (mm) |
6.3 |
| Mounting |
Surface Mount |
| Package Type |
SMD |
| Product Diameter (mm) |
N/R |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
2 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|

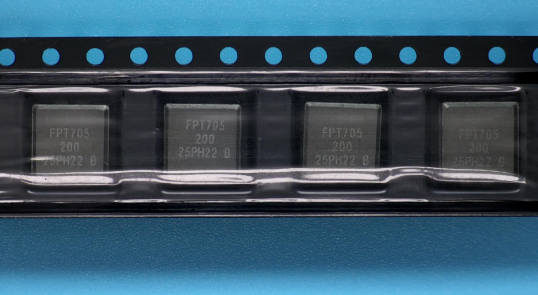

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

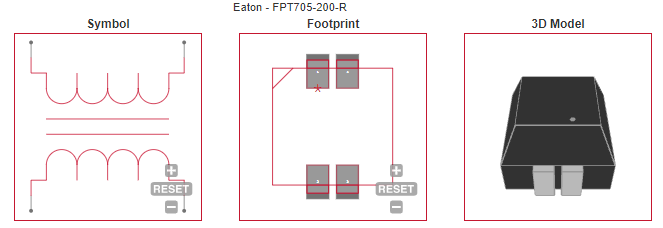

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Compatible with Picor® Cool-Power®ZVS Buck and Buck-Boost Regulator Families (Picor part number series PI33xx and PI34xx |
| |
