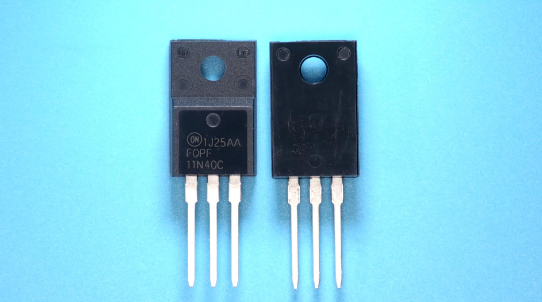

FQPF11N40C onsemi / Fairchild MOSFET N-CH 400V 10.5A TO-220F

2024/06/21 211

• 10.5 A, 400 V, RDS(on) = 530 m (Max.) @ VGS = 10 V, ID = 5.25 A

• Low Gate Charge (Typ. 28 nC

• Low Crss (Typ. 85 pF

• 100% Avalanche Tested

• These Devices are Pb−Free and are RoHS Compliant

CATALOG

China

Channel Type	N
Channel Mode	Enhancement
Configuration	Single
Maximum Drain Source Voltage (V)	400
Maximum Continuous Drain Current (A)	10.5
Maximum Gate Source Voltage (V)	±30
Maximum Drain Source Resistance (mOhm)	530@10V
Typical Gate Charge @ Vgs (nC)	28@10V
Typical Gate Charge @ 10V (nC)	28
Maximum Power Dissipation (mW)	44000
Category	Power MOSFET
Typical Input Capacitance @ Vds (pF)	840@25V
Typical Turn-On Delay Time (ns)	14
Typical Turn-Off Delay Time (ns)	81
Typical Fall Time (ns)	81
Typical Rise Time (ns)	89
Number of Elements per Chip	1
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150

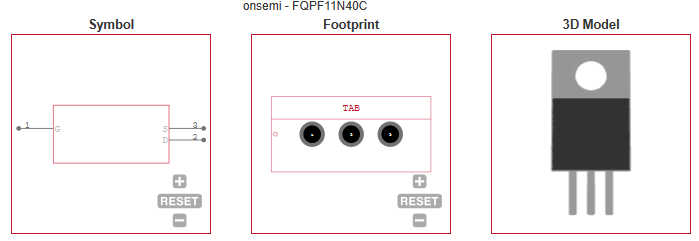

Supplier Package	TO-220FP
Basic Package Type	Through Hole
Pin Count	3
Lead Shape	Through Hole
PCB	3
Tab	Tab
Pin Pitch (mm)	2.54
Package Length (mm)	10.16
Package Width (mm)	4.7
Package Height (mm)	15.87
Package Diameter (mm)	N/R
Package Overall Length (mm)	10.16
Package Overall Width (mm)	4.7
Package Overall Height (mm)	19.1
Seated Plane Height (mm)	19.1
Mounting	Through Hole
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Transistor Outline Package Fullpak
Package Family Name	TO
Jedec	TO-220-F
Package Outline	Link to Datasheet

MSL	N/R
Maximum Reflow Temperature (°C)	N/R
Reflow Solder Time (Sec)	N/R
Maximum Wave Temperature (°C)	260
Wave Solder Time (Sec)	5 to 6
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	CuSn
Number of Wave Cycles	2

Packaging	Tube
Quantity Of Packaging	1000
