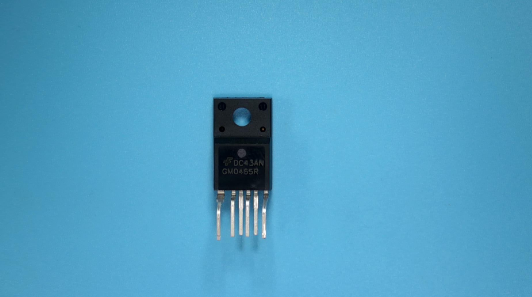

FSGM0465RUDTU COUNTRY OF ORIGIN
|
FSGM0465RUDTU LIFECYCLE
|
FSGM0465RUDTU PARAMETRIC INFO
|
FSGM0465RUDTU PACKAGE INFO
|
FSGM0465RUDTU MANUFACTURING INFO
|
FSGM0465RUDTU PACKAGING INFO
|

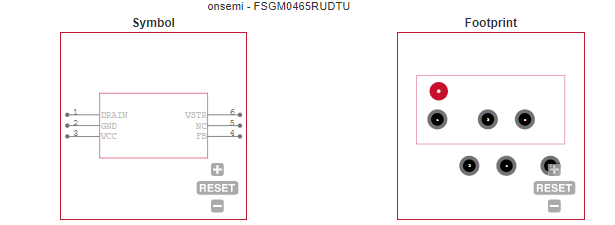

FSGM0465RUDTU ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
LIFECYCLE
|
Obsolete
Nov 19,2017
|
|
PARAMETRIC INFO
|
| Topology |
Flyback |
| Soft Start Option |
Yes |
| Maximum Switching Frequency (kHz) |
72 |
| Minimum Under Voltage Lock Out (V) |
11 |
| Typical Under Voltage Lock Out (V) |
12 |
| Maximum Under Voltage Lock Out (V) |
13 |
| Minimum Supply Voltage (V) |
7.5 |
| Maximum Supply Voltage (V) |
26 |
| Maximum Supply Current (mA) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Supplier Package |
TO-220F |
| Basic Package Type |
Through Hole |
| Pin Count |
6 |
| Lead Shape |
Through Hole |
| PCB |
6 |
| Tab |
Tab |
| Package Length (mm) |
10.16 |
| Package Width (mm) |
4.6 |
| Package Height (mm) |
15.87 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
19.47 |
| Mounting |
Through Hole |
| Package Material |
Plastic |
| Package Description |
Transistor Outline Package Fullpak |
| Package Family Name |
TO |
| Jedec |
TO-220-F |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 to 6 |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
400 |
|
|
ECAD MODELS
|
|
|
