FSV340AF onsemi / Fairchild DIODE SCHOTTKY 40V 3A SMAF

label:

2025/07/18 79

FSV340AF onsemi / Fairchild DIODE SCHOTTKY 40V 3A SMAF

CATALOG

FSV340AF COUNTRY OF ORIGIN

FSV340AF LIFECYCLE

FSV340AF PARAMETRIC INFO

FSV340AF PACKAGE INFO

FSV340AF MANUFACTURING INFO

FSV340AF PACKAGING INFO

COUNTRY OF ORIGIN

China

Taiwan (Province of China)

Obsolete
Apr 01,2022

PARAMETRIC INFO

Type	Schottky Diode
Configuration	Single
Maximum DC Reverse Voltage (V)	40
Peak Reverse Repetitive Voltage (V)	40
Maximum Continuous Forward Current (A)	3
Maximum Forward Voltage (V)	0.5
Peak Non-Repetitive Forward Surge Current (A)	80
Peak Reverse Current (uA)	100@Ta=85°C
Peak Reverse Recovery Time (ns)	12.62(Typ)
Operating Junction Temperature (°C)	-55 to 150
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	150
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150

Supplier Package	SMAF
Basic Package Type	Lead-Frame SMT
Pin Count	2
Lead Shape	Flat
PCB	2
Tab	N/R
Pin Pitch (mm)	N/R
Package Length (mm)	4(Max)
Package Width (mm)	2.7(Max)
Package Height (mm)	1.1(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	5(Max)
Package Overall Width (mm)	2.7(Max)
Package Overall Height (mm)	1.1(Max)
Seated Plane Height (mm)	1.1(Max)
Mounting	Surface Mount
Terminal Width (mm)	1.9(Max)
Package Weight (g)	N/A
Package Material	Plastic
Package Description	SMD Plastic Package
Package Family Name	DO
Package Outline	Link to Datasheet

MANUFACTURING INFO

Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	Fe Alloy

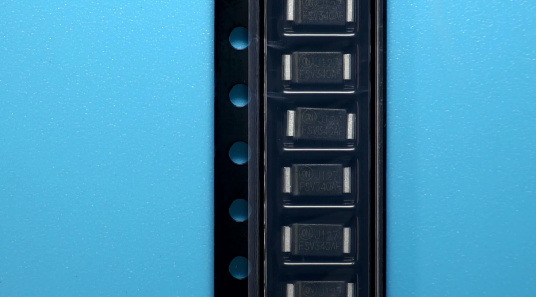

Packaging	Tape and Reel
Quantity Of Packaging	10000
Packaging Document	Link to Datasheet
