PARAMETRIC INFO
|
| Typical Supply Current (mA) |
30 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Supply Voltage (V) |
3 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-40 |
| Minimum Storage Temperature (°C) |
-65 |
| Protocols Supported |
USB 2.0 |
| Maximum Data Rate (Mbps) |
480 |
| Interface Type |
I2C/GPIO/SPI/UART |
| USB Speed Type |
Full Speed|High Speed |
| Type |
USB Interface Device |
| USB Transceiver |
Yes |
|
| |
PACKAGE INFO
|
| Supplier Package |
LQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
48 |
| Lead Shape |
Gull-wing |
| PCB |
48 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
1.4 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.6(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026BBC |
| Package Outline |
Link to Datasheet |
|
| |
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/R |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
| |
PACKAGING INFO
|
| Packaging Suffix |
REEL |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
16.5 |
| Tape Pitch (mm) |
12 |
| Tape Width (mm) |
16 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q2 |
| Packaging Document |
Link to Datasheet |
|
|

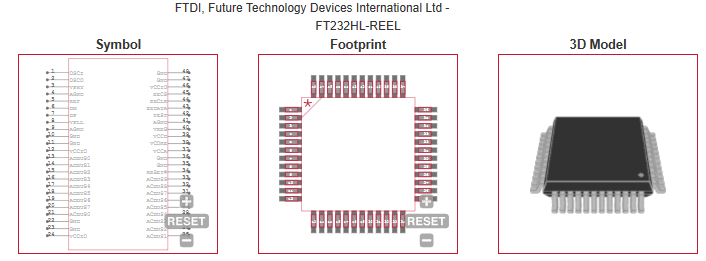

ECAD MODELS
|
|
|
