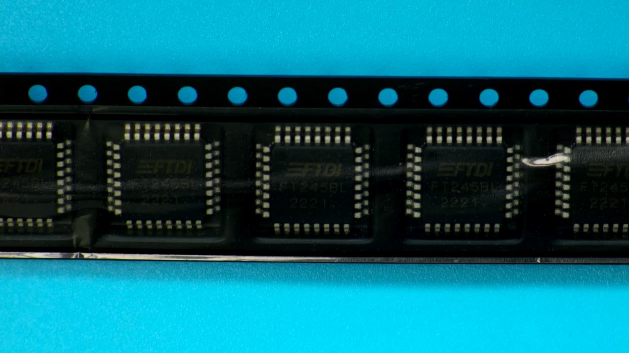

FT245BL-REEL FTDI IC USB FIFO 32LQFP

2024/08/26 209

• Single Chip USB  Parallel FIFO bi-directional Data Transfer

• Transfer Data rate to 1M Byte / Sec - D2XX Drivers

• Transfer Data rate to 300 Kilobyte / Sec - VCP Drivers

• Simple to interface to MCU / PLD/ FPGA logic with a 4 wire handshake interface

• Entire USB protocol handled on-chip… no USBspecific firmware programm

• FTDI’s royalty-free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases.

• 384 Byte FIFO Tx buffer / 128 Byte FIFO Rx Buffer for high data throughput.

• New Send Immediate support via SI Pin for optimised data throughput.

• Support for USB Suspend / Resume through PWREN# and WAKEUP pins.

• Support for high power USB Bus powered devices through PWREN# pin

• Adjustable RX buffer timeout

• In-built support for event characters

• Integrated level converter on FIFO and control signals for interfacing to 5V and 3.3V logic

CATALOG

Indonesia

Taiwan (Province of China)

Obsolete
Jun 30,2023

Typical Supply Current (mA)	25
Maximum Operating Temperature (°C)	70
Maximum Storage Temperature (°C)	150
Maximum Operating Supply Voltage (V)	5.25
Minimum Operating Supply Voltage (V)	4.35
Typical Operating Supply Voltage (V)	5
Minimum Operating Temperature (°C)	0
Minimum Storage Temperature (°C)	-65
Supplier Temperature Grade	Industrial
Protocols Supported	USB 1.1/USB 2.0
Maximum Data Rate (Mbps)	12
Interface Type	Parallel
USB Speed Type	Full Speed\|High Speed
Type	USB to UART/FIFO
USB Transceiver	Yes

Supplier Package	LQFP
Basic Package Type	Lead-Frame SMT
Pin Count	32
Lead Shape	Gull-wing
PCB	32
Tab	N/R
Pin Pitch (mm)	0.8
Package Length (mm)	7
Package Width (mm)	7
Package Height (mm)	1.4
Package Diameter (mm)	N/R
Package Overall Length (mm)	9
Package Overall Width (mm)	9
Package Overall Height (mm)	1.6(Max)
Seated Plane Height (mm)	1.6(Max)
Mounting	Surface Mount
Package Material	Plastic
Package Description	Low Profile Quad Flat Package
Package Family Name	QFP

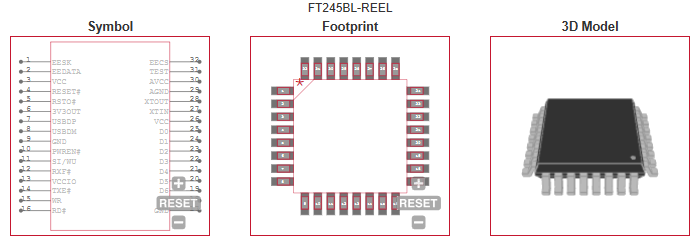

Package Outline	Link to Datasheet
