| • A wide variety of single pole, double pole, high-capacity (16 A)
type and high-sensitivity type (250 mW) relays are available. |
| • IEC/EN 60335-1 conformed. (-HA Model) |
| • Satisfies ambient operating temperature requirement of 85°C
and 105°C (-CV Model). |
| • Clearance and creepage distance: 8 mm / 8 mm min. |
| • G2RL-1(A)-E-ASI: TV3 rating models available. |
| • IEC/EN 60079-15 conformed
(Except G2RL-1(A)-H, G2RL-1A-E-CV(-HA) Models). |
| • Reduced power consumption with voltage holding and pulse
width modulation (PWM) control (only for G2RL-@-PW1 model). |
|
| CATALOG |

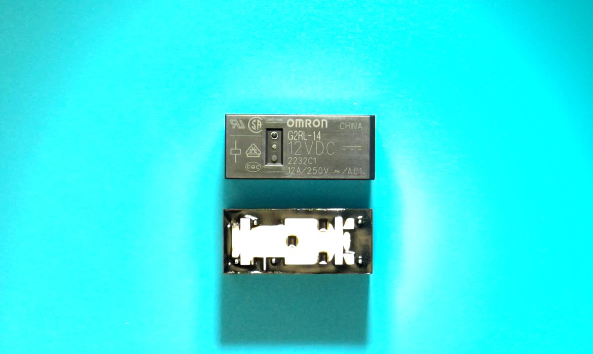

| G2RL-14 DC12 COUNTRY OF ORIGIN |
| G2RL-14 DC12 PARAMETRIC INFO |
| G2RL-14 DC12 PACKAGE INFO |
| G2RL-14 DC12 MANUFACTURING INFO |
| G2RL-14 DC12 PACKAGING INFO |
| G2RL-14 DC12 ECAD MODELS |
| G2RL-14 DC12 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Japan |
|
| PARAMETRIC INFO |
| DC Coil Voltage (V) |
12 |
| Coil Current (mA) |
33.3 |
| Contact Arrangement |
SPDT |
| Contact Form |
1 Form C |
| Contact Material |
Silver Alloy(Cadmium Free) |
| Maximum AC Switching Voltage (V) |
440 |
| Maximum DC Switching Voltage (V) |
300 |
| Maximum Switching Current (A) |
12 |
| Coil Resistance (Ohm) |
360 |
| Maximum Pick-Up Voltage |
8.4VDC |
| Minimum Dropout Voltage |
1.2VDC |
| Relay Construction |
Non-Latching |
| Operate Time (ms) |
15 |
| Release Time (ms) |
5 |
| Seal |
Sealed |
| Maximum Contact Resistance (mOhm) |
100 |
| Insulation Resistance (MOhm) |
1000 |
| Electrical Life (Operations) |
50000 |
| Mechanical Life (Operations) |
20000000 |
| LED Indicator |
No |
| Coil Suppression Diode |
No |
| Push to Test Button |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
|
| |
| PACKAGE INFO |
| Mounting |
Through Hole |
| Termination Style |
PC Pin |
| Number of Terminals |
5 |
| Package Type |
N/A |
| Product Length (mm) |
29 |
| Product Depth (mm) |
12.7 |
| Product Height (mm) |
15.7 |
| Product Weight (g) |
12 |
|
| |
| MANUFACTURING INFO |
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |
| PACKAGING INFO |
| Packaging |
Tube |
| Quantity Of Packaging |
20 |
| Packaging Document |
Link to Datasheet |
|
| |
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Home appliances |
• OA equipment
|
| • Industrial machinery |
| |
|
