| CATALOG |

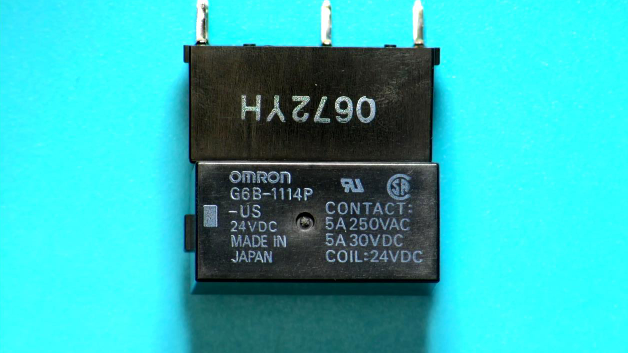

| G6B-1114P-US-DC24 COUNTRY OF ORIGIN |
G6B-1114P-US-DC24 PARAMETRIC INFO
|
G6B-1114P-US-DC24 PACKAGE INFO
|
G6B-1114P-US-DC24 MANUFACTURING INFO
|
G6B-1114P-US-DC24 PACKAGING INFO
|
G6B-1114P-US-DC24 EACD MODELS
|
| |
| COUNTRY OF ORIGIN |
| Japan |
| |
PARAMETRIC INFO
|
| DC Coil Voltage (V) |
twenty four |
| Coil Current (mA) |
8.3 |
| Contact Arrangement |
SPST-NO |
| Contact Form |
1 Form A |
| Contact Material |
Silver Alloy(Cadmium Free) |
| Maximum AC Switching Voltage (V) |
380 |
| Maximum DC Switching Voltage (V) |
125 |
| Maximum Switching Current (A) |
5 |
| Coil Resistance (Ohm) |
2.88K |
| Maximum Pick-Up Voltage |
16.8VDC |
| Minimum Dropout Voltage |
2.4VDC |
| Relay Construction |
Non-Latching |
| Operate Time (ms) |
10 |
| Release Time (ms) |
10 |
| Seal |
Sealed |
| Maximum Contact Resistance (mOhm) |
30 |
| Insulation Resistance (MOhm) |
1000(Min) |
| Electrical Life (Operations) |
100000 |
| Mechanical Life (Operations) |
50000000 |
| LED Indicator |
no |
| Coil Suppression Diode |
no |
| Push to Test Button |
no |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
70 |
|
| |
PACKAGE INFO
|
| Install |
Through Hole |
| Termination Style |
PC Pin |
| Number of Terminals |
4 |
| Package Type |
not applicable |
| Product Length (mm) |
twenty one |
| Product Depth (mm) |
10 |
| Product Height (mm) |
10 |
| Product Weight (g) |
3.5 |
|
| |
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum reflow temperature (°C) |
N/R |
| Reflow soldering time (seconds) |
N/R |
| Maximum wave soldering temperature (°C) |
260 |
| Wave soldering time (seconds) |
5 |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
not applicable |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
|
| |
PACKAGING INFO
|
| Package |
Tray |
| packaging type file |
Link to datasheet |
|
| |
ECAD MODELS
|
|
