| CATALOG |
| GA352QR7GF102KW01L COUNTRY OF ORIGIN |
| GA352QR7GF102KW01L PARAMETRIC INFO |
| GA352QR7GF102KW01L PACKAGE INFO |
| GA352QR7GF102KW01L MANUFACTURING INFO |
| GA352QR7GF102KW01L PACKAGING INFO |
| GA352QR7GF102KW01L ECAD MODELS |
|
| COUNTRY OF ORIGIN |
Philippines
|
| China |
| Singapore |
| Japan |
|
| PARAMETRIC INFO |
| Capacitance Value |
0.001uF |
| Voltage |
250VAC |
| Tolerance |
10% |
| Dielectric |
X7R |
| Suppression Class |
X1/Y2 |
| Technology |
Standard |
| Maximum Operating Temperature (°C) |
125 |
| Case Style |
Ceramic Chip |
| Construction |
Flat |
| Microwave Application |
No |
| Operating Temperature (°C) |
-55 to 125 |
| Minimum Operating Temperature (°C) |
-55 |
| Negative Capacitance Tolerance (%) |
-10 |
| Positive Capacitance Tolerance (%) |
10 |
| AC Rated Voltage (VAC) |
250 |
| Minimum Storage Temperature (°C) |
5 |
| Maximum Storage Temperature (°C) |
40 |
| Maximum Dissipation Factor (%) |
2.5 |
| Polarity |
Non Polar |
| Special Features |
Safety Certified |
| Test Frequency (Hz) |
1K |
| Fixed/Variable |
Fixed |
| Maximum Terminal Width (mm) |
3.1 |
|
| |
| PACKAGE INFO |
| Package/Case |
2211 |
| Mounting |
Surface Mount |
| Termination Style |
Pad |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
5.7 |
| Product Depth (mm) |
2.8 |
| Product Height (mm) |
1.5 |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
0.12001 |
| Length Tolerance (mm) |
±0.4 |
| Depth Tolerance (mm) |
±0.3 |
| Height Tolerance (mm) |
-0.3 |
| Diameter Tolerance (mm) |
N/R |
| Number of Terminals |
2 |
| Size (mm) |
5.7 X 2.8 X 1.5 |
| Maximum Product Length (mm) |
6.1 |
| Maximum Product Depth (mm) |
3.1 |
| Maximum Product Height (mm) |
1.5 |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
| |

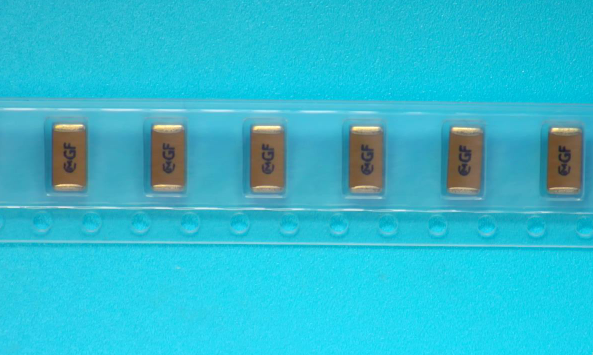

| PACKAGING INFO |
| Packaging Suffix |
L |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
7.09 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
| |

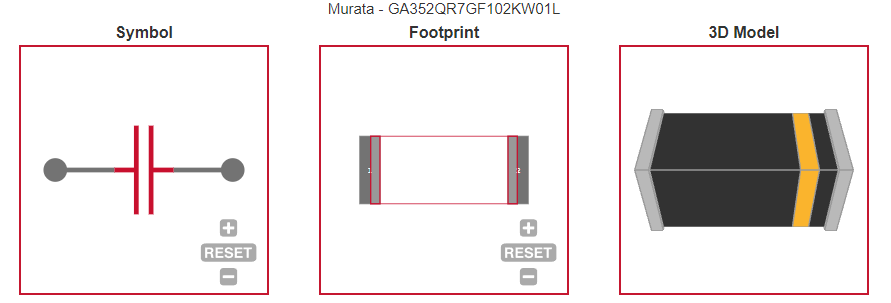

| ECAD MODELS |
 |
| |
|
