GCM188R71H224KA64D COUNTRY OF ORIGIN
|
GCM188R71H224KA64D PARAMETRIC INFO
|
GCM188R71H224KA64D PACKAGE INFO
|
GCM188R71H224KA64D MANUFACTURING INFO
|
GCM188R71H224KA64D PACKAGING INFO
|

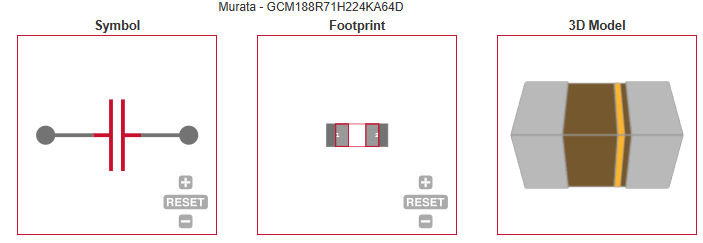

GCM188R71H224KA64D ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Japan
|
Philippines
|
|
PARAMETRIC INFO
|
| Capacitance Value |
0.22uF |
| Voltage |
50VDC |
| Tolerance |
10% |
| Dielectric |
X7R |
| Technology |
Standard |
| Maximum Operating Temperature (°C) |
125 |
| Case Style |
Ceramic Chip |
| Construction |
Flat |
| Microwave Application |
No |
| Operating Temperature (°C) |
-55 to 125 |
| Minimum Operating Temperature (°C) |
-55 |
| DC Rated Voltage (VDC) |
50 |
| Negative Capacitance Tolerance (%) |
-10 |
| Positive Capacitance Tolerance (%) |
10 |
| Maximum Storage Temperature (°C) |
40 |
| Minimum Storage Temperature (°C) |
5 |
| Maximum Dissipation Factor (%) |
2.5 |
| Polarity |
Non Polar |
| Special Features |
Ideal for Powertrains and Safety Devices in Automotive |
| Test Frequency (Hz) |
1K |
| Fixed/Variable |
Fixed |
| Maximum Terminal Width (mm) |
0.9 |
|
|
PACKAGE INFO
|
| Package/Case |
0603 |
| Mounting |
Surface Mount |
| Termination Style |
Pad |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
1.6 |
| Product Depth (mm) |
0.8 |
| Product Height (mm) |
0.8 |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
0.0063 |
| Length Tolerance (mm) |
±0.1 |
| Depth Tolerance (mm) |
±0.1 |
| Height Tolerance (mm) |
±0.1 |
| Diameter Tolerance (mm) |
N/R |
| Number of Terminals |
2 |
| Size (mm) |
1.6 X 0.8 X 0.8 |
| Maximum Product Length (mm) |
1.7 |
| Maximum Product Depth (mm) |
0.9 |
| Maximum Product Height (mm) |
0.9 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
270 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
| Shelf Life Period |
6 Months |
| Number of Wave Cycles |
N/A |
|
|

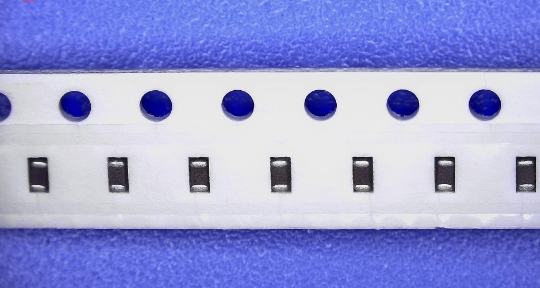

PACKAGING INFO
|
| Packaging Suffix |
D |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
| Reel Diameter (in) |
7.09 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Paper |
|
|
ECAD MODELS
|
|
|
