• Easy to use
|
• Interfaces directly with microprocessors
|
• 0.15-in. character height in 4, 8, and 16 (2×8) character
packages
|
• 0.20-in. character height in 4 and 8 character packages
|
• Rugged X- and Y-stackable package
|
• Serial input
|
|
| CATALOG |
| HCMS-2973 COUNTRY OF ORIGIN |
HCMS-2973 PARAMETRIC INFO
|
HCMS-2973 PACKAGE INFO
|
HCMS-2973 MANUFACTURING INFO
|

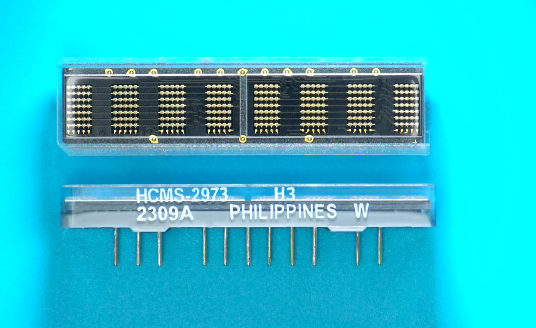

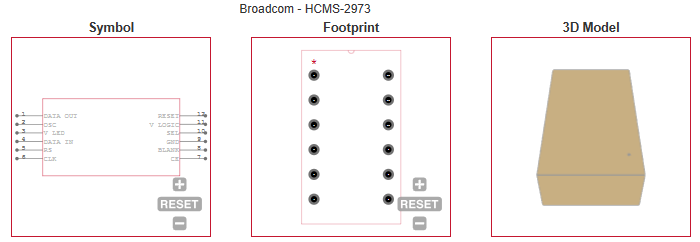

HCMS-2973 ECAD MODELS
|
HCMS-2973 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
PARAMETRIC INFO
|
| Color |
Green |
| Digit Size (in) |
0.2 |
| Dominant Wavelength (nm) |
574 |
| Intensity (ucd) |
270 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
| Number of Digits |
8 |
| Type |
Module |
| Peak Wavelength (nm) |
568 |
| Character Displayed |
Alphanumeric |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Power Dissipation (mW) |
2400 |
| Minimum Operating Supply Voltage (V) |
3 |
| Number of LEDs |
140 |
| Total Thickness (mm) |
5.31 |
| Typical Operating Supply Voltage (V) |
5 |
| Viewing Area Height (mm) |
4.57 |
| Viewing Area Length (mm) |
2.54 |
| Maximum Storage Temperature (°C) |
100 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Supplier Package |
DIP |
| Basic Package Type |
Through Hole |
| Pin Count |
14 |
| Lead Shape |
Through Hole |
| PCB |
14 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
42.93(Max) |
| Package Width (mm) |
11.43(Max) |
| Package Height (mm) |
5.31 |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Description |
Dual In Line Package |
| Package Family Name |
DIP |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
250 |
| Wave Solder Time (Sec) |
3 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Telecommunications equipment
|
| • Portable data entry devices |
| • Computer peripherals |
| • Medical equipment |
| • Test equipment |
• Business machines
|
• Avionics
|
• Industrial controls
|
| |
