• Interfaces Encoder to Microprocessor
|
• 14 MHz Clock Operation
|
• High Noise Immunity
|
• Schmitt Trigger Inputs and Digital Noise Filter
|
• 16-Bit Binary Up/Down Counter
|
• Latched Outputs
|
• 8-Bit Tristate Interface
|
|
| CATALOG |
HCTL-2017-PLC LIFECYCLE
|
HCTL-2017-PLC PARAMETRIC INFO
|
HCTL-2017-PLC PACKAGE INFO
|
HCTL-2017-PLC MANUFACTURING INFO
|
HCTL-2017-PLC PACKAGING INFO
|
HCTL-2017-PLC ECAD MODELS
|
HCTL-2017-PLC APPLICATIONS
|
|
LIFECYCLE
|
Obsolete
Nov 22,2020
|
|
PARAMETRIC INFO
|
| Clock Frequency (MHz) |
14 |
| Counter Size (bit) |
16 |
| Number of Inputs |
2 |
| Number of Outputs |
8 |
| Maximum Input Current (uA) |
10 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
|
|

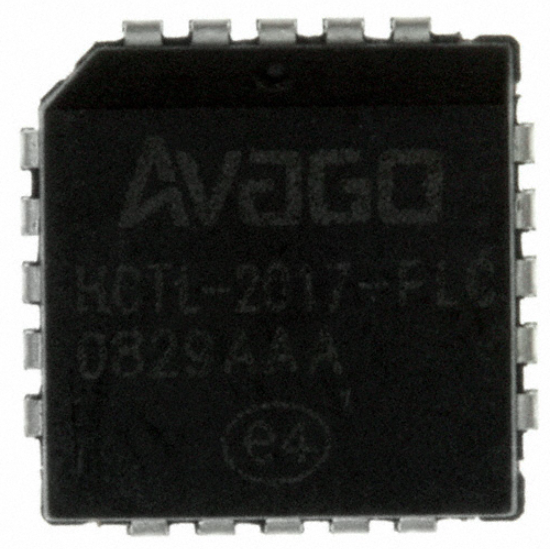

PACKAGE INFO
|
| Supplier Package |
PLCC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
20 |
| Lead Shape |
J-Lead |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
8.94 |
| Package Width (mm) |
8.94 |
| Package Height (mm) |
3.86 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
4.37 |
| Mounting |
Surface Mount |
| Terminal Width (mm) |
0.43 (Lower)|0.71 (Upper) |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Plastic Leaded Chip Carrier |
| Package Family Name |
LCC |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
N/A |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Document |
Link to Datasheet |
|
|

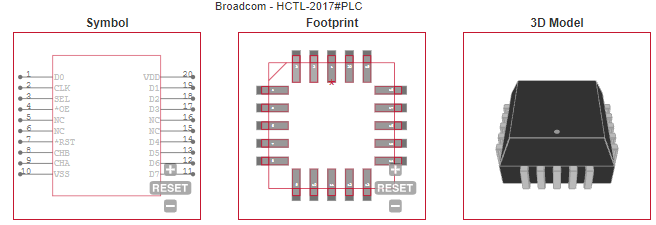

ECAD MODELS
|
 |
|
| APPLICATIONS |
| • Interface Quadrature Incremental Encoders to Microprocessors |
| • Interface Digital Potentiometers to Digital Data Input Buses |
| |
