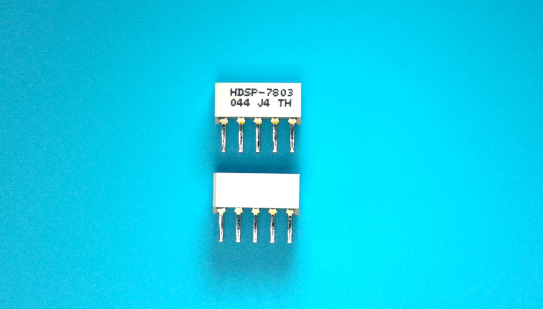

• Compact package
– 0.300 x 0.500 inches
– Leads on 2.54 mm (0.1 inch) centers |
| • Choice of colors: AllnGaP Deep Red, AllnGaP Red,
AllnGaP Yellow, AllnGaP Green, and GaP Orange |
• Excellent appearance
– Evenly lighted segments
– Mitered corners on segments
– Surface color gives optimum contrast
– ±50° viewing angle |
• Design flexibility
– Common anode or common cathode
– Right-hand decimal point
– ±1 right-hand decimal overflow character
|
• Categorized for luminous intensity
– Yellow and Green categorized for color
– Use of like categories yields a uniform display |
|
| CATALOG |
| HDSP-7803-JK000 COUNTRY OF ORIGIN |
| HDSP-7803-JK000 PARAMETRIC INFO |
| HDSP-7803-JK000 PACKAGE INFO |
| HDSP-7803-JK000 MANUFACTURING INFO |
| HDSP-7803-JK000 PACKAGING INFO |
|
| COUNTRY OF ORIGIN |
| Thailand |
|
| PARAMETRIC INFO |
| Type |
Module |
| Color |
Green |
| Number of LEDs |
8 |
| Number of Digits |
1 |
| Configuration |
Common Cathode |
| Digit Size (in) |
0.3 |
| Peak Wavelength (nm) |
572 |
| Intensity (ucd) |
7500 |
| Dominant Wavelength (nm) |
571 |
| Maximum Forward Voltage (V) |
2.5 |
| Maximum Forward Current (mA) |
30 |
| Character Displayed |
Numeric |
| Maximum Reverse Voltage (V) |
3(Min) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
100 |
| Internal Protection |
No |
| Typical Forward Voltage (V) |
2 |
| Viewing Area Length (mm) |
4.19 |
| Viewing Area Height (mm) |
7.62 |
| Total Thickness (mm) |
6.09 |
| Maximum Storage Temperature (°C) |
100 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Power Dissipation (mW) |
75 |
| Test Current (mA) |
10 |
|
| |
| PACKAGE INFO |
| Supplier Package |
DIP Module |
| Basic Package Type |
Through Hole |
| Pin Count |
10 |
| PCB |
10 |
| Tab |
N/R |
| Package Length (mm) |
12.7 |
| Package Width (mm) |
7.62 |
| Package Height (mm) |
6.09 |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Description |
Dual In Line Module |
| Package Family Name |
DIP |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
250 |
| Wave Solder Time (Sec) |
3 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
SnAgCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |
| PACKAGING INFO |
|
|
|
