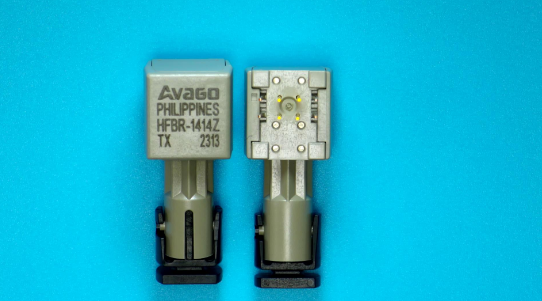

• RoHS compliant
|
• Low-cost transmitters and receivers
|
• Choice of ST, SMA, SC, or FC ports
|
• 820 nm wavelength technology
|
• Signal rates up to 160 MBaud
|
• Link distances up to several kilometers
|
|
| CATALOG |
| HFBR-1414Z COUNTRY OF ORIGIN |
HFBR-1414Z PARAMETRIC INFO
|
HFBR-1414Z PACKAGE INFO
|
HFBR-1414Z MANUFACTURING INFO
|
HFBR-1414Z PACKAGING INFO
|
HFBR-1414Z ECAD MODELS
|
HFBR-1414Z APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Philippines |
|
PARAMETRIC INFO
|
| Type |
TX |
| Maximum Data Rate |
160MBd |
| Emitter Type |
LED |
| Connector Type |
ST |
| Peak Wavelength (nm) |
820 |
| Fiber Mode |
Multi Mode |
| Maximum Power Dissipation (mW) |
40 |
| Rise Time (ns) |
6.3/6.5 |
| Maximum Fall Time (ns) |
6.3/6.5 |
| Typical Diode Capacitance (pF) |
70 |
| Typical Forward Voltage (V) |
1.7|1.84 |
| Maximum Forward Current (mA) |
100 |
| Maximum Output Current (mA) |
25 |
| Minimum Operating Supply Voltage (V) |
-0.5 |
| Typical Operating Supply Voltage (V) |
1.8|2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) |
7 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Distance (m) |
2700 |
| Operating Supply Voltage (V) |
-0.5 to 7 |
| Maximum Storage Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Supplier Package |
N/A |
| Basic Package Type |
Through Hole |
| Pin Count |
8 |
| Lead Shape |
Through Hole |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
12.7 |
| Package Width (mm) |
27.2 |
| Package Height (mm) |
10.2 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/A |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
N/A |
| Package Family Name |
N/A |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|

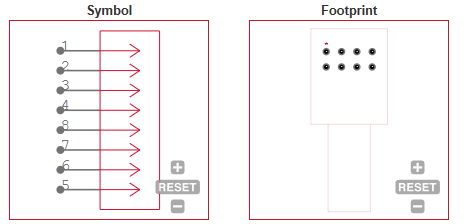

APPLICATIONS
|
• 100BASE-SX Fast Ethernet on 850 nm
|
| • Media/fiber conversion, switches, routers, hubs, and
NICs on 100BASE-SX |
• Local area networks
|
• Computer-to-peripheral links and computer monitor
links
|
•Digital cross connect links
|
• Central office switch/PBX links
|
• Video links
|
• Modems and multiplexers
|
• Suitable for Tempest systems
|
• Industrial control links
|
| |
