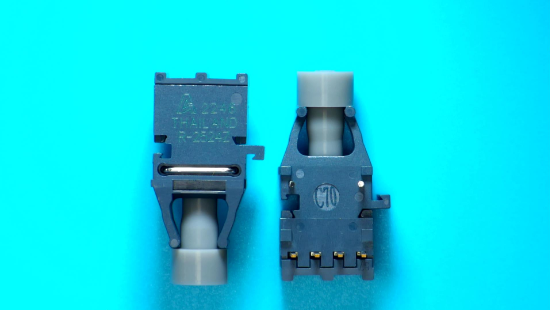

| • RoHS compliant |
| • Low-cost fiber-optic components |
| • Enhanced digital links: DC to 5 Mbaud |
| • Extended distance links up to 120m at 40 Kbaud |
| • Low-current link: 6-mA peak supply current |
| • Horizontal and vertical mounting |
| • Interlocking feature |
| • High noise immunity |
| • Easy connectoring: simplex, duplex, and latching
connectors |
| • Flame retardant |
| • Transmitters with a 660-nm red LED for easy visibility |
| • Compatible with standard TTL circuitry |
|
| CATALOG |
| HFBR-2524Z COUNTRY OF ORIGIN |
| HFBR-2524Z PARAMETRIC INFO |
| HFBR-2524Z PACKAGE INFO |
| HFBR-2524Z MANUFACTURING INFO |
| HFBR-2524Z ECAD MODELS |
| HFBR-2524Z APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
|
| PARAMETRIC INFO |
| Type |
RX |
| Maximum Data Rate |
1MBd |
| Emitter Type |
LED |
| Connector Type |
Versatile-Link |
| Peak Wavelength (nm) |
600 |
| Maximum Power Dissipation (mW) |
40 |
| Maximum Output Current (mA) |
25 |
| Minimum Operating Supply Voltage (V) |
-0.5 |
| Typical Operating Supply Voltage (V) |
1.8|2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) |
7 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Distance (m) |
20 |
| Operating Supply Voltage (V) |
-0.5 to 7 |
| Maximum Storage Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-40 |
|
| PACKAGE INFO |
| Supplier Package |
N/A |
| Pin Count |
6 |
| PCB |
6 |
| Tab |
N/R |
| Package Length (mm) |
18.8 |
| Package Width (mm) |
12.2 |
| Package Height (mm) |
7.6 |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
N/A |
| Package Description |
N/A |
| Package Family Name |
N/A |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|

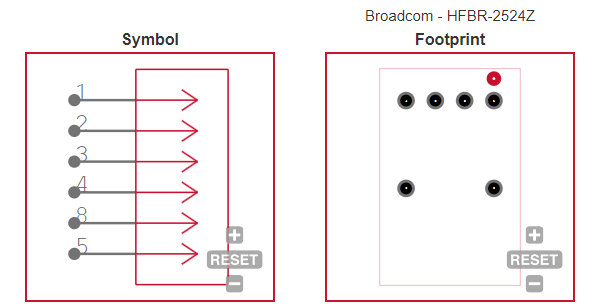

| ECAD MODELS |
|
|
| APPLICATIONS |
| • Reduction of lightning/voltage transient susceptibility |
| • Motor controller triggering |
| • Data communications and local area networks |
| • Electromagnetic compatibility (EMC) for regulated
systems such as FCC, VDE, and CSA |
| • Tempest-secure data processing equipment |
| • Isolation in test and measurement instruments |
| • Error-free signaling for industrial and manufacturing
equipment |
| • Automotive communications and control networks |
| • Noise-immune communication in audio and video
equipment |
|
