| • RoHS compliant |
| • Data transmission at signal rates of 1 to 125 Mbaud
over distances of 100 meters |
| • Compatible with inexpensive, easily terminated plastic
optical fiber, and with large-core silica fiber |
| • High voltage isolation |
| • Transmitter and receiver application circuit schematics
and recommended board layouts available |
| • Interlocking feature for single-channel or duplex links, in
a vertical or horizontal mount configuration |
|
| CATALOG |

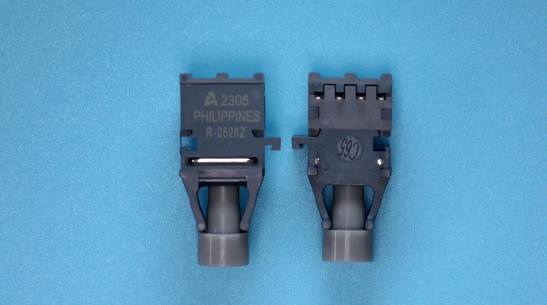

HFBR-2526Z COUNTRY OF ORIGIN
|
| HFBR-2526Z LIFECYCLE |
| HFBR-2526Z PARAMETRIC INFO |
| HFBR-2526Z PACKAGE INFO |
| HFBR-2526Z MANUFACTURING INFO |
| HFBR-2526Z ECAD MODELS |
| HFBR-2526Z APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
|
| LIFECYCLE |
Obsolete
Jun 30,2023 |
|
| PARAMETRIC INFO |
| Type |
RX |
| Maximum Data Rate |
125MBd |
| Average Optical Output Power (dBm) |
-9.7(Typ) |
| Emitter Type |
LED |
| Peak Wavelength (nm) |
650 |
| Rise Time (ns) |
6.3 |
| Maximum Fall Time (ns) |
6.3 |
| Maximum Forward Current (mA) |
60 |
| Maximum Output Current (mA) |
25 |
| Minimum Operating Supply Voltage (V) |
-0.5 |
| Typical Operating Supply Voltage (V) |
1.8|2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) |
6 |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Maximum Distance (m) |
100 |
| Operating Supply Voltage (V) |
-0.5 to 6 |
| Maximum Storage Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-40 |
|
| |
| PACKAGE INFO |
| Supplier Package |
N/A |
| Pin Count |
6 |
| PCB |
6 |
| Tab |
N/R |
| Package Length (mm) |
N/A |
| Package Width (mm) |
N/A |
| Package Height (mm) |
N/A |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Description |
N/A |
| Package Family Name |
N/A |
| Jedec |
N/A |
|
| |
| MANUFACTURING INFO |
| MSL |
4 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Intrasystem links: board-to-board, rack-to-rack |
| • Telecommunications switching systems |
| • Computer-to-peripheral data links, PC bus extension |
| • Industrial control |
| • Proprietary LANs |
| • Digitized video |
| • Medical instruments |
| • Reduction of lightning and voltage transient
susceptibility |
|
