HFCG-1600+ PARAMETRIC INFO
|
HFCG-1600+ PACKAGE INFO
|
HFCG-1600+ MANUFACTURING INFO
|
HFCG-1600+ PACKAGING INFO
|
HFCG-1600+ ECAD MODELS
|
|
PARAMETRIC INFO
|
| Type |
High Pass |
| Center Frequency (Hz) |
1600M |
| Maximum Insertion Loss (dB) |
1.6 |
| Load Impedance |
50Ohm |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Frequency (Hz) |
5000M |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Terminal Width (mm) |
0.3 |
|
|
PACKAGE INFO
|
| Mounting |
Surface Mount |
| Number of Terminals |
8 |
| Case Size |
0805 |
| Product Length (mm) |
2 |
| Product Depth (mm) |
1.25 |
| Product Height (mm) |
0.95 |
| Product Weight (g) |
0.008 |
| Terminal Pitch (mm) |
N/R |
| Package Type |
SMD |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
245 to 250 |
| Reflow Solder Time (Sec) |
N/A |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Ag |
| Number of Wave Cycles |
N/R |
|
|

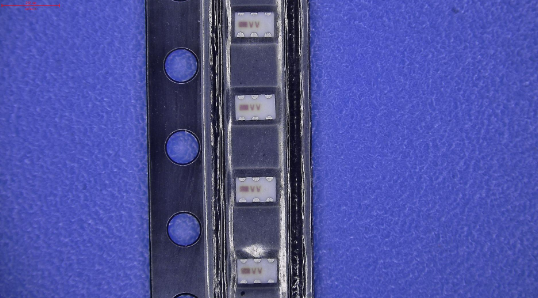

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Packaging Document |
Link to Datasheet |
|
|

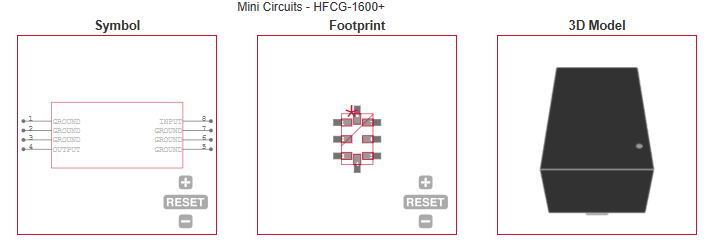

ECAD MODELS
|
|
|
