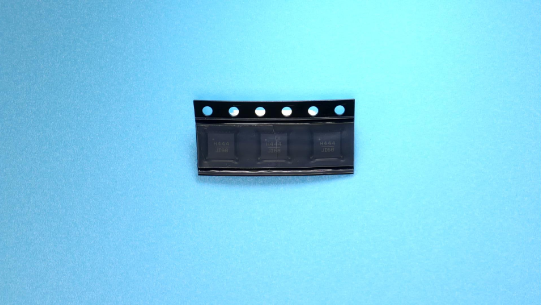

HMC444LP4E Analog Devices IC MULTIPLIER X8 ACTIVE 24SMD

label:

2023/12/22 411

• Output Power: +6 dBm

• Sub-Harmonic Suppression: >25 dBc

• SSB Phase Noise: -136 dBc/Hz

• Single Supply: +5V@ 68 mA

• 24 Lead 4x4 mm SMT Package: 16 mm2

CATALOG

HMC444LP4E COUNTRY OF ORIGIN

HMC444LP4E PARAMETRIC INFO

HMC444LP4E PACKAGE INFO

HMC444LP4E MANUFACTURING INFO

HMC444LP4E PACKAGING INFO

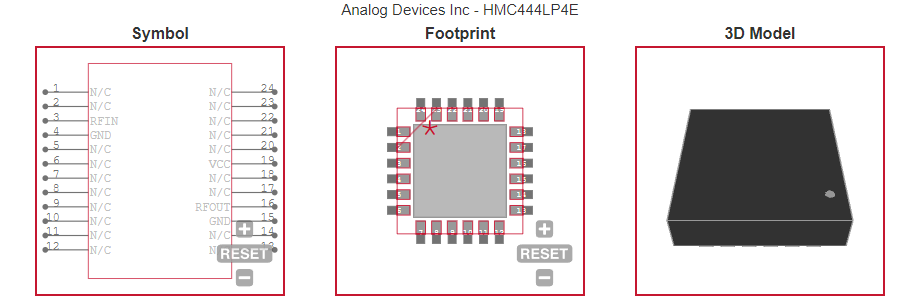

HMC444LP4E ECAD MODELS

HMC444LP4E APPLICATIONS

COUNTRY OF ORIGIN

Malaysia

Korea (Republic of)

PARAMETRIC INFO

Frequency Multiplier Type	Active
Multiplying Factor	x8
Input Frequency Range (GHz)	1.2375 to 1.4
Output Frequency Range (GHz)	9.9 to 11.2
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Typical Output Power (dBm)	6
Maximum Input Power	5dBm
Typical Input Return Loss (dB)	22
Typical Output Return Loss (dB)	7
Minimum Operating Supply Voltage (V)	4.5
Typical Operating Supply Voltage (V)	5
Maximum Operating Supply Voltage (V)	5.5
Maximum Supply Current (mA)	91
Typical Phase Noise (dBc/Hz)	-136
Maximum Power Dissipation (mW)	650
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	150

Supplier Package	LFCSP EP
Basic Package Type	Non-Lead-Frame SMT
Pin Count	24
Lead Shape	No Lead
PCB	24
Tab	N/R
Pin Pitch (mm)	0.5
Package Length (mm)	4
Package Width (mm)	4
Package Height (mm)	0.88
Package Diameter (mm)	N/R
Package Overall Length (mm)	4
Package Overall Width (mm)	4
Package Overall Height (mm)	0.9
Seated Plane Height (mm)	0.9
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Lead Frame Chip Scale Package, Exposed Pad
Package Family Name	CSP
Jedec	MO-220VGGD-8
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	J-STD-020D
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	Cu Alloy

Packaging	Tape and Reel
Quantity Of Packaging	500

• Active Multiplier for X Band Applications:

• Fiber Optic

• Point-to-Point Radios

• Military Radar
