HMC451LC3 Analog Devices IC RF AMP GP 5GHZ-20GHZ 16SMT

label:
2025/02/7 77
HMC451LC3 Analog Devices  IC RF AMP GP 5GHZ-20GHZ 16SMT


CATALOG
HMC451LC3 COUNTRY OF ORIGIN
HMC451LC3 PARAMETRIC INFO
HMC451LC3 PACKAGE INFO
HMC451LC3 MANUFACTURING INFO
HMC451LC3 PACKAGING INFO
HMC451LC3 ECAD MODELS
HMC451LC3 APPLICATIONS


COUNTRY OF ORIGIN
United States of America


PARAMETRIC INFO
Manufacturer Type Low Noise Amplifier
Number of Channels per Chip 1
Typical Power Gain (dB) 17@20000MHz
Typical Noise Figure (dB) 7@20000MHz
Process Technology GaAs pHEMT
Operational Bias Conditions 5V/114mA
Typical Output 1dB Compressed Power @ Bias Conditions (dBm) 19.5
Typical 3rd Order Output Intercept Point @ Bias Conditions (dBm) 29
Typical Output Intercept Point (dBm) 29@20000MHz
Minimum Operating Frequency (MHz) 5000
Maximum Power Dissipation (mW) 1100
Maximum Operating Frequency (MHz) 20000
Typical Output Power (dBm) 19.5@20000MHz
Typical Output Power Range (dBm) 15 to 20
Maximum Input Return Loss (dB) 12(Typ)@20000MHz
Maximum Output Return Loss (dB) 8(Typ)@20000MHz
Power Supply Type Single
Typical Single Supply Voltage (V) 5
Maximum Single Supply Voltage (V) 5.5
Maximum Operating Supply Voltage (V) 5.5
Maximum Supply Current (mA) 114(Typ)@5V
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Maximum Storage Temperature (°C) 150
Minimum Storage Temperature (°C) -65


PACKAGE INFO
Supplier Package CLLCC EP
Pin Count 16
PCB 16
Tab N/R
Pin Pitch (mm) 0.5
Package Length (mm) 2.9
Package Width (mm) 2.9
Package Height (mm) 0.8
Package Diameter (mm) N/R
Mounting Surface Mount
Package Weight (g) N/A
Package Material Ceramic
Package Family Name LCC
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL 3
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Au
Under Plating Material Ni
Terminal Base Material Cu Alloy

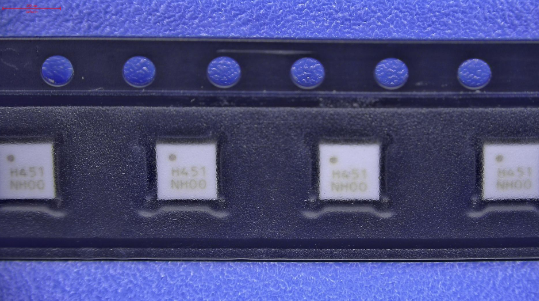

PACKAGING INFO
Packaging Tape and Reel
Quantity Of Packaging 500

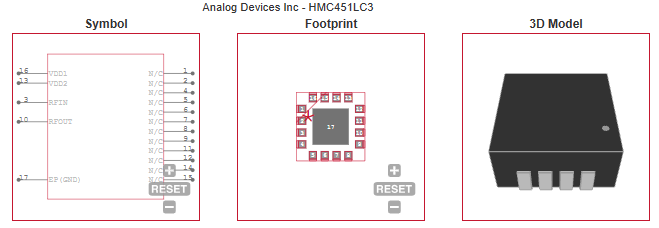

ECAD MODELS



APPLICATIONS
• Microwave Radio & VSAT
• Military & Space
