• 2, 3, 4 & 6 dB Fixed Attenuation Levels
|
• Wide Bandwidth: DC - 25 GHz
|
• Excellent Attenuation Accuracy
|
• Power Handling: +25 dBm
|
• 6 Lead 2x2 mm SMT Package: 4 mm2
|
|
| CATALOG |
HMC653LP2ETR COUNTRY OF ORIGIN
|
HMC653LP2ETR PARAMETRIC INFO
|
HMC653LP2ETR PACKAGE INFO
|
HMC653LP2ETR MANUFACTURING INFO
|
HMC653LP2ETR PACKAGING INFO
|
HMC653LP2ETR ECAD MODELS
|
HMC653LP2ETR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
United States of America
|
|
PARAMETRIC INFO
|
| Module/IC Classification |
IC |
| Manufacture Type |
Fixed Attenuator |
| Minimum Frequency (GHz) |
0 |
| Maximum Frequency (GHz) |
25 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Typical Attenuation (dB) |
3 |
| Attenuation Tolerance (dB) |
±0.5 |
| Maximum Input Power |
26dBm |
| Impedance (Ohm) |
50 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
DFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
No Lead |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.75(Max) |
| Package Length (mm) |
2.05(Max) |
| Package Width (mm) |
2.05(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.05(Max) |
| Package Overall Width (mm) |
2.05(Max) |
| Package Overall Height (mm) |
1.05(Max) |
| Seated Plane Height (mm) |
1.05(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Dual Flat Package No Lead, Exposed Pad |
| Package Family Name |
DFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

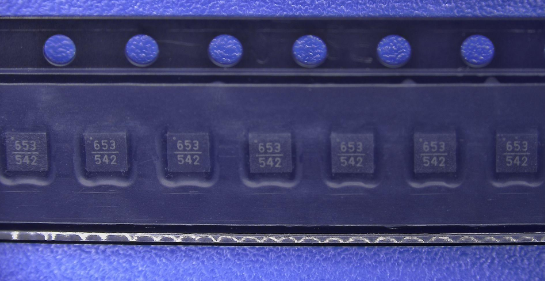

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Reel Diameter (in) |
13 |
| Packaging Document |
Link to Datasheet |
|
|

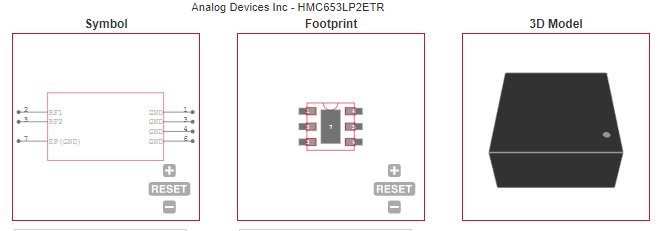

ECAD MODELS
|
 |
|
| APPLICATIONS |
| • Fiber Optics |
| • Microwave Radio |
| • Military & Space |
| • Test & Measurement |
| • Scientific Instruments |
| • RF / Microwave Circuit Prototyping |
| |
