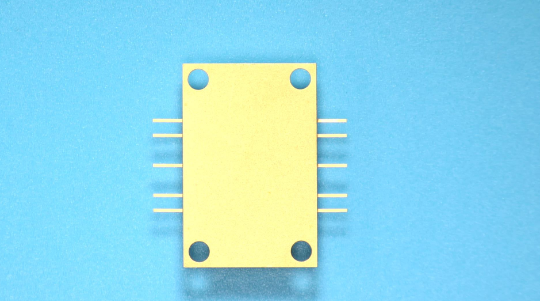

• High PSAT: 46 dBm
|
• High power gain: 20 dB
|
• High PAE: 38%
|
• Instantaneous bandwidth: 0.3 GHz to 6 GHz
|
• Supply voltage: VDD = 50 V at 1300 mA
|
• 10-lead LDCC package
|
|
CATALOG |
HMC8205BF10 COUNTRY OF ORIGIN
|
HMC8205BF10 PARAMETRIC INFO
|
HMC8205BF10 PACKAGE INFO
|
HMC8205BF10 PACKAGING INFO
|
HMC8205BF10 FUNCTIONAL BLOCK DIAGRAM
|
HMC8205BF10 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
United States of America
|
|
PARAMETRIC INFO
|
Type |
Shield |
Material |
Glass Filled Polybutylene Terephthalate |
Color |
Black |
Operating Temperature (°C) |
-40 to 120 |
Minimum Operating Temperature (°C) |
-40 |
Maximum Operating Temperature (°C) |
80 |
|
|
PACKAGE INFO
|
Body Orientation |
Straight |
|
|
PACKAGING INFO
|
Packaging |
Carton |
Packaging Document |
Link to Datasheet |
|
|

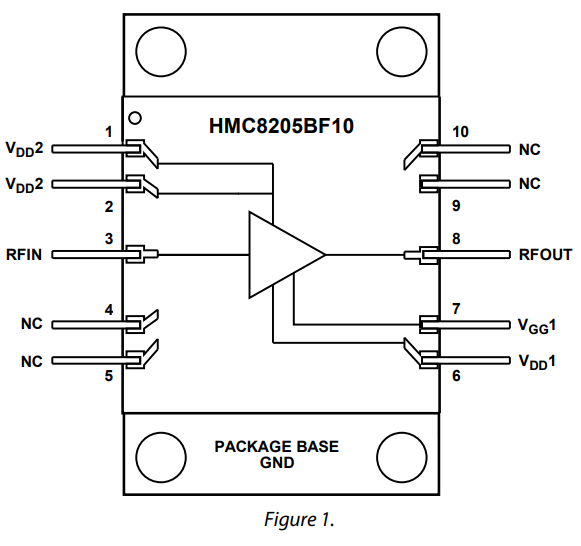

FUNCTIONAL BLOCK DIAGRAM
|

|
|
APPLICATIONS
|
• Military jammers
|
• Commercial and military radar
|
• Power amplifier stage for wireless infrastructure |
• Test and measurement equipment |
|
