| HX1198FNLT COUNTRY OF ORIGIN |
| HX1198FNLT PARAMETRIC INFO |
| HX1198FNLT PACKAGE INFO |
| HX1198FNLT MANUFACTURING INFO |
| HX1198FNLT PACKAGING INFO |

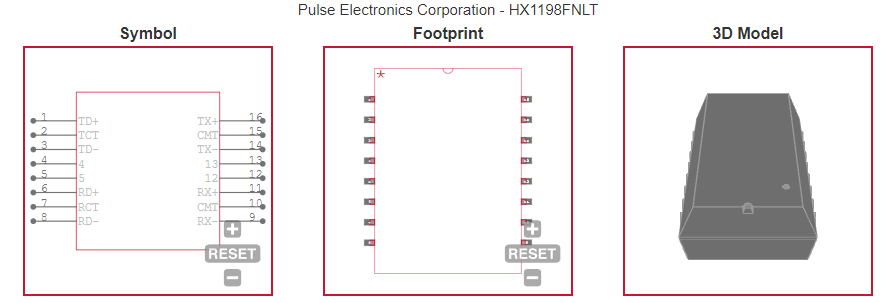

| HX1198FNLT ECAD MODELS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Transformer Type |
100Base-TX Single Port Transformer |
| Turns Ratio |
2(1:1) |
| Maximum OCL Inductance (mH) |
0.35(Min) |
| Maximum Insertion Loss (dB) |
-1.2@100KHz |
| Minimum Return Loss (dB) |
-18@5MHz |
| High Potential |
1500Vrms(Min) |
| Minimum Crosstalk (dB) |
-62@1MHz |
| Minimum CMRR (dB) |
-32(Typ)@100MHz |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 85 |
|
| |
| PACKAGE INFO |
| Mounting |
Surface Mount |
| Lead Style |
Gull Wing |
| Number of Terminals |
16 |
| Package Type |
N/A |
| Product Length (mm) |
12.7 |
| Product Depth (mm) |
9.65 |
| Product Height (mm) |
5.99 |
| Terminal Pitch (mm) |
1.27 |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|

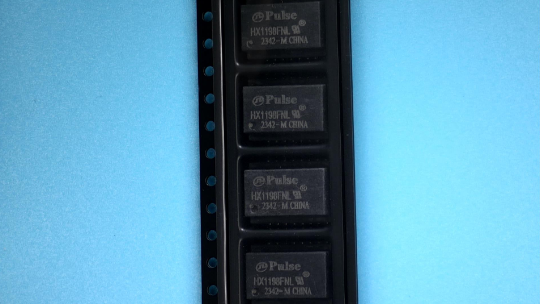

| |
| PACKAGING INFO |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
600 |
|
| |
