• Lowest Power 9-Axis Device at 2.5 mW
|
• 3-Axis Gyroscope with Programmable FSR of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps
|
• 3-Axis Accelerometer with Programmable FSR of ±2g, ±4g, ±8g, and ±16g
|
| • 3-Axis Compass with a wide range to ±4900 µT |
| • Onboard Digital Motion Processor (DMP) |
| • Android support |
| • Auxiliary I2 C interface for external sensors |
| • On-Chip 16-bit ADCs and Programmable Filters |
| • 7 MHz SPI or 400 kHz Fast Mode I²C |
| • Digital-output temperature sensor |
| • VDD operating range of 1.71V to 3.6V |
| • MEMS structure hermetically sealed and bonded at wafer level |
| • RoHS and Green compliant |
| |
| CATALOG |
| ICM-20948 COUNTRY OF ORIGIN |
ICM-20948 PARAMETRIC INFO
|
ICM-20948 PACKAGE INFO
|
ICM-20948 MANUFACTURING INFO
|
ICM-20948 PACKAGING INFO
|
ICM-20948 EACD MODELS
|
| ICM-20948 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
| |
PARAMETRIC INFO
|
| Category |
9-Axis MotionTracking Device |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Typical Operating Supply Voltage (V) |
1.8 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
125 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Supply Voltage (V) |
1.71 |
| Output Type |
Digital |
|
| |
PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
No Lead |
| PCB |
16 |
| Tab |
N/R |
| Package Length (mm) |
3 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.98 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
| |
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
N/A |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Number of Wave Cycles |
N/R |
|
|

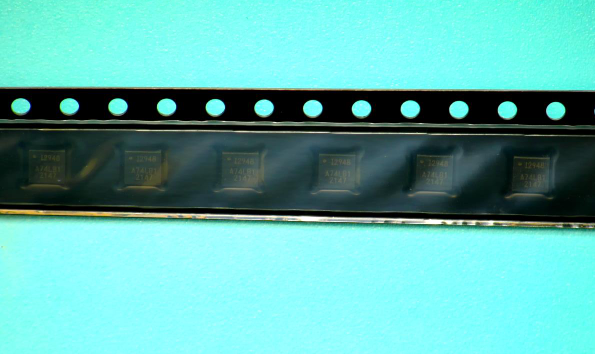

PACKAGING INFO
|
| Packaging Document |
Link to Datasheet |
|
|

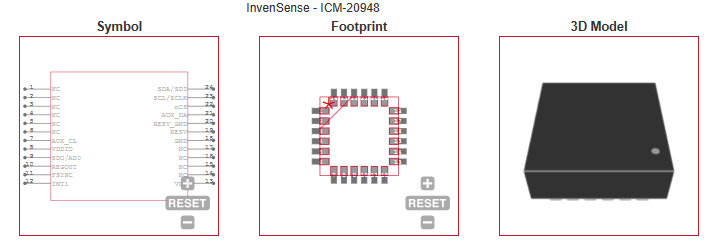

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Smartphones and Tablets |
| • Wearable Sensors |
| • IoT Applications |
| |
