• High temperature, up to 155 °C
|
• 10.8 mm x 10.2 mm x 4.0 mm SMD package
|
• Magnetically shielded construction
|
• Metal alloy core
|
|
| CATALOG |
IHLP4040DZER1R0M5A COUNTRY OF ORIGIN
|
IHLP4040DZER1R0M5A PARAMETRIC INFO
|
IHLP4040DZER1R0M5A PACKAGE INFO
|
IHLP4040DZER1R0M5A MANUFACTURING INFO
|
IHLP4040DZER1R0M5A PACKAGING INFO
|
IHLP4040DZER1R0M5A ECAD MODELS
|
IHLP4040DZER1R0M5A APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Power Choke |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Metal |
| Inductance (H) |
1u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
100K |
| Maximum DC Current (A) |
23.5(Typ) |
| Maximum Saturation Current (A) |
32(Typ) |
| Maximum DC Resistance (Ohm) |
0.00307 |
| Minimum Self Resonant Frequency (Hz) |
37.2M(Typ) |
| Maximum Operating Temperature (°C) |
155 |
| Minimum Operating Temperature (°C) |
-55 |
| Operating Temperature (°C) |
-55 to 155 |
|
|
PACKAGE INFO
|
| Case Size |
4040 |
| Maximum Product Length (mm) |
11.1 |
| Maximum Product Depth (mm) |
10.29 |
| Maximum Product Height (mm) |
4 |
| Maximum Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
2.5 |
| Terminal Pitch (mm) |
N/R |
| Mounting |
Surface Mount |
| Product Diameter (mm) |
N/R |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
20 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
|
|

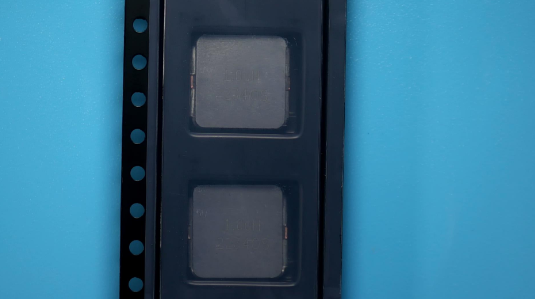

PACKAGING INFO
|
|
| |

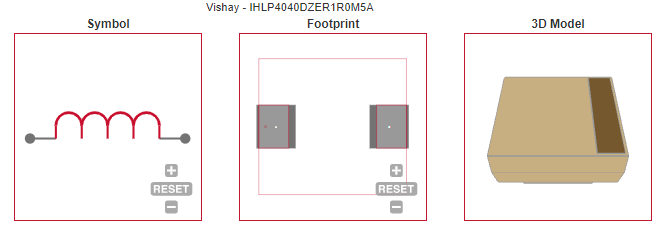

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Engine and transmission control units |
| • DC/DC converters for infotainment, navigation systems,lighting |
| • Noise suppression and filtering |
| • LED drivers |
| |
