IHLP6767DZER6R8M11 COUNTRY OF ORIGIN
|
IHLP6767DZER6R8M11 PARAMETRIC INFO
|
IHLP6767DZER6R8M11 PACKAGE INFO
|
IHLP6767DZER6R8M11 MANUFACTURING INFO
|
IHLP6767DZER6R8M11 PACKAGING INFO
|
IHLP6767DZER6R8M11 ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
United States of America
|
Israel
|
|
PARAMETRIC INFO
|
| Type |
Power Choke |
| Technology |
Wirewound |
| Protection Style |
Shielded |
| Core Material |
Powdered Iron |
| Inductance (H) |
6.8u |
| Tolerance |
20% |
| Inductance Test Frequency (Hz) |
100K |
| Maximum DC Current (A) |
14.5(Typ) |
| Maximum Saturation Current (A) |
10.5(Typ) |
| Maximum DC Resistance (Ohm) |
0.01379 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Operating Temperature (°C) |
-55 to 125 |
|
|
PACKAGE INFO
|
| Case Size |
6767 |
| Maximum Product Length (mm) |
17.28 |
| Maximum Product Depth (mm) |
17.15 |
| Maximum Product Height (mm) |
4 |
| Maximum Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
6.75 |
| Mounting |
Surface Mount |
| Product Diameter (mm) |
N/R |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
20 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
|
|

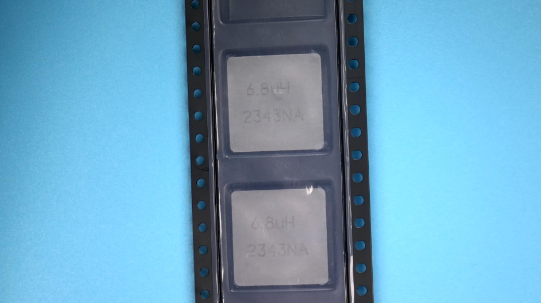

PACKAGING INFO
|
|
|
|

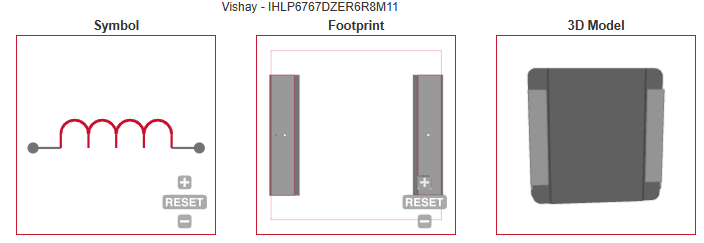

ECAD MODELS
|
|
|
