• 2-axis linear accelerometer
|
• Selectable full scale: ±0.5/±1/±2/±3 g
|
• Ultralow noise performance: 15 µg/√Hz
|
• Superior stability over temperature (<0.075 mg/°C) and repeatability
|
• Embedded compensation for high stability over temperature
|
• I²C/SPI digital output interface
|
• Low power: 0.42 mA with 2 axes delivering full performance
|
• Sensor hub feature to efficiently collect data from additional external sensors
|
• Smart embedded FIFO up to 3 KB
|
• Programmable high-pass and low-pass digital filters
|
• Programmable machine learning core to integrate AI algorithms and reduce power consumption at system level
|
• Programmable finite state machine to process data from accelerometer and one external sensor
|
• Extended operating temperature range (-40 °C to +105 °C)
|
• Embedded temperature sensor
|
• Analog supply voltage: 1.71 V to 3.6 V
|
• High shock survivability
|
• ECOPACK and RoHS compliant
|
|
| CATALOG |
IIS2ICLXTR COUNTRY OF ORIGIN
|
IIS2ICLXTR PARAMETRIC INFO
|
IIS2ICLXTR PACKAGE INFO
|
IIS2ICLXTR MANUFACTURING INFO
|
IIS2ICLXTR PACKAGING INFO
|
IIS2ICLXTR ECAD MODELS
|
IIS2ICLXTR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malta
|
|
PARAMETRIC INFO
|
| Category |
Inclinometer |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Typical Operating Supply Voltage (V) |
1.8 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
125 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Supply Voltage (V) |
1.71 |
| Output Type |
Digital |
|
|
PACKAGE INFO
|
| Supplier Package |
CCLGA |
| Pin Count |
16 |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
1 |
| Package Length (mm) |
5 |
| Package Width (mm) |
5 |
| Package Height (mm) |
1.7 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Family Name |
LGA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|

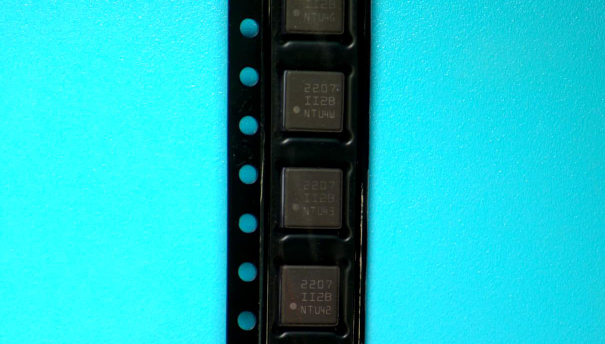

| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

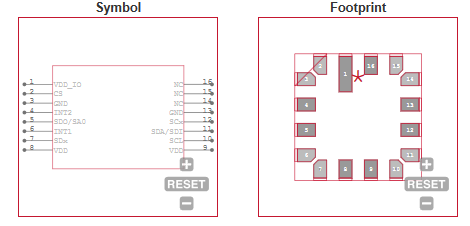

| ECAD MODELS |
|
|
| APPLICATIONS |
• Precision inclinometers
|
• Antenna pointing and platform leveling
|
• Structural health monitoring
|
• Precise leveling instruments
|
• Installation and monitoring of equipment
|
• Robotics and industrial automation
|
|
