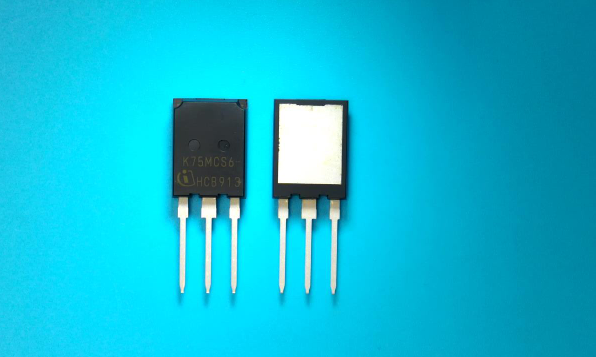

IKQ75N120CS6XKSA1 Infineon Technologies IGBT 1200V 75A TO247-3-46

label:
2024/03/5 233



- 1200VTRENCHSTOPTMIGBT6technologyoffering:
   •Highefficiencyinhardswitchingandresonanttopologies
   •Easyparallelingcapabilityduetopositivetemperature
- coefficientinVCEsat
   •LowEMI
   •LowGateChargeQg
   •Verysoft,fastrecoveryfullcurrentanti-paralleldiode
   •Maximumjunctiontemperature175°C
   •Pb-freeleadplating;RoHScompliant
   •CompleteproductspectrumandPSpiceModels


CATALOG
IKQ75N120CS6XKSA1 Country of Origin
IKQ75N120CS6XKSA1 Parametric Info
IKQ75N120CS6XKSA1 Package Info
IKQ75N120CS6XKSA1 Packaging Info
IKQ75N120CS6XKSA1 ECAD Models
IKQ75N120CS6XKSA1 Applications


COUNTRY OF ORIGIN
Germany
China


PARAMETRIC INFO
Channel Type N
Configuration Single
Maximum Collector-Emitter Voltage (V) 1200
Maximum Continuous Collector Current (A) 150
Maximum Power Dissipation (W) 880
Technology Trench Stop
Maximum Gate Emitter Voltage (V) ±20
Typical Collector Emitter Saturation Voltage (V) 1.85
Maximum Gate Emitter Leakage Current (uA) 0.6
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 175
Tradename TrenchStop™


PACKAGE INFO
Supplier Package TO-247
Pin Count 3
PCB 3
Tab Tab
Package Length (mm) 15.8
Package Width (mm) 5
Package Height (mm) 21
Package Diameter (mm) N/R
Seated Plane Height (mm) 25.12
Mounting Through Hole
Package Family Name TO-247
Package Outline Link to Datasheet


PACKAGING INFO
Packaging Tube
Quantity Of Packaging 240

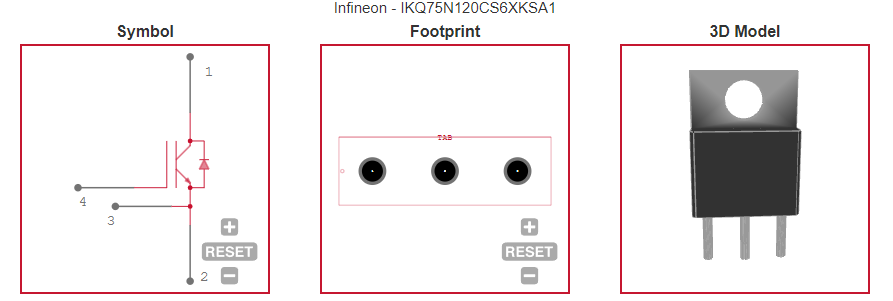

ECAD MODELS



APPLICATIONS
•IndustrialUPS
•Charger
•Energystorage
•Three-levelSolarStringInverter
•Welding
