• LowEMI
|
• LowGateChargeQg
|
• Verysoft,fastrecoveryfullcurrentanti-paralleldiode
|
| • Maximumjunctiontemperature175°C |
| • Pb-freeleadplating;RoHScompliant |
| • CompleteproductspectrumandPSpiceModels:http://www.infineon.com/igbt/ |
| |
| CATALOG |
| IKW40N120CS6XKSA1 COUNTRY OF ORIGIN |
IKW40N120CS6XKSA1 PARAMETRIC INFO
|
IKW40N120CS6XKSA1 PACKAGE INFO
|
IKW40N120CS6XKSA1 PACKAGING INFO
|
IKW40N120CS6XKSA1 EACD MODELS
|
| IKW40N120CS6XKSA1 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Germany |
|
PARAMETRIC INFO
|
| Channel Type |
N |
| Configuration |
Single |
| Maximum Collector-Emitter Voltage (V) |
1200 |
| Maximum Continuous Collector Current (A) |
80 |
| Maximum Power Dissipation (W) |
500 |
| Technology |
Trench Stop |
| Maximum Gate Emitter Voltage (V) |
±20 |
| Typical Collector Emitter Saturation Voltage (V) |
1.85 |
| Maximum Gate Emitter Leakage Current (uA) |
0.6 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
175 |
| Tradename |
TrenchStop™ |
|
|

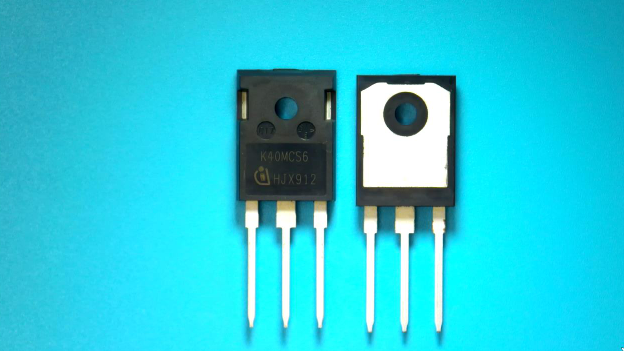

PACKAGE INFO
|
| Supplier Package |
TO-247 |
| Pin Count |
3 |
| PCB |
3 |
| Tab |
Tab |
| Package Length (mm) |
16.13(Max) |
| Package Width (mm) |
5.21(Max) |
| Package Height (mm) |
21.1(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Family Name |
TO |
| Package Outline |
Link to Datasheet |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
240 |
|
|
ECAD MODELS
|
|
|

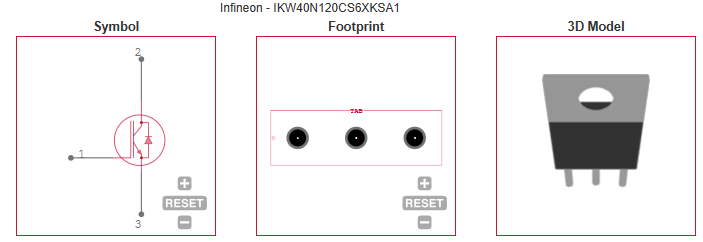

| APPLICATIONS |
| • IndustrialUPS |
| • Charger |
| • Energystorage |
| • Three-levelSolarStringInverter |
| • Welding |
| |
