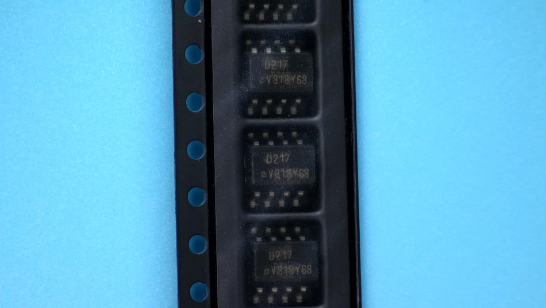

ILD217T Vishay Semiconductors OPTOISOLTR 4KV 2CH TRANS 8-SOIC

label:
2023/12/12 324


• Two channel coupler
• SOIC-8 surface mountable package
• Standard lead spacing of 0.05"
• Available only on tape and reel option (conforms to EIA standard 481-2)
• Isolation test voltage, 4000 VRMS
• Compatible with dual wave, vapor phase and IR reflow soldering
• Material categorization: for definitions of compliance please see


CATALOG
ILD217T COUNTRY OF ORIGIN
ILD217T PARAMETRIC INFO
ILD217T PACKAGE INFO
ILD217T MANUFACTURING INFO
ILD217T PACKAGING INFO
ILD217T ECAD MODELS


COUNTRY OF ORIGIN
China
Germany
Malaysia


PARAMETRIC INFO
Input Type DC
Output Type DC
Output Device Transistor
Standard cUL|UL|IEC
Number of Channels per Chip 2
Typical Forward Voltage (V) 1.2
Maximum Forward Voltage (V) 1.55
Maximum Forward Current (mA) 30
Maximum Reverse Voltage (V) 6
Maximum Collector-Emitter Voltage (V) 70
Maximum Collector-Emitter Saturation Voltage (mV) 400
Minimum Isolation Voltage (Vrms) 4000
Maximum Power Dissipation (mW) 300
Minimum Current Transfer Ratio (%) 100
Maximum Current Transfer Ratio (%) 120(Typ)
Current Transfer Ratio Test Current (mA) 1
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 100
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150

PACKAGE INFO
Supplier Package SOIC
Basic Package Type Lead-Frame SMT
Pin Count 8
Lead Shape Gull-wing
PCB 8
Tab N/R
Package Length (mm) 5.84
Package Width (mm) 3.91
Package Height (mm) 3.38 - 0.2(Max)
Package Diameter (mm) N/R
Seated Plane Height (mm) 3.38
Mounting Surface Mount
Package Material Plastic
Package Description Small Outline IC
Package Family Name SO
Package Outline Link to Datasheet

MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 10
Number of Reflow Cycle 2
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Matte Sn
Under Plating Material N/A
Terminal Base Material Cu Alloy|Fe Alloy
Shelf Life Period N/A
Shelf Life Condition N/A
Number of Wave Cycles N/R

PACKAGING INFO
Packaging Suffix 7T
Packaging Tape and Reel

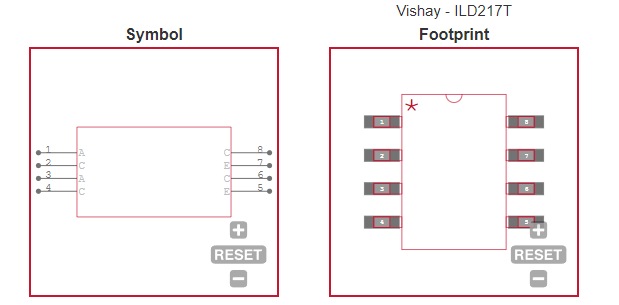

ECAD MODELS
