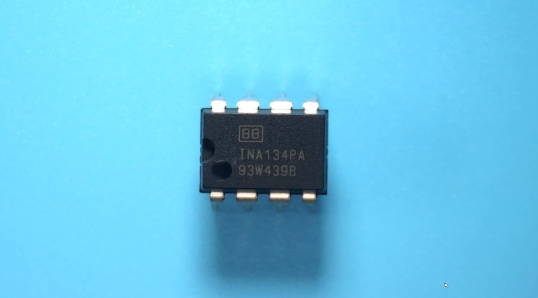

INA134PA Texas Instruments AUDIO DIFFERENTIAL LINE RECEIVERS 0dB (G = 1)

• SINGLE AND DUAL VERSIONS

• LOW DISTORTION: 0.0005% at f = 1kHz

• HIGH SLEW RATE: 14V/µs

• FAST SETTLING TIME: 3µs to 0.01%

• WIDE SUPPLY RANGE: ±4V to ±18V

• LOW QUIESCENT CURRENT: 2.9mA max

CATALOG

INA134PA COUNTRY OF ORIGIN

INA134PA LIFECYCLE

INA134PA PARAMETRIC INFO

INA134PA PACKAGE INFO

INA134PA MANUFACTURING INFO

INA134PA PACKAGING INFO

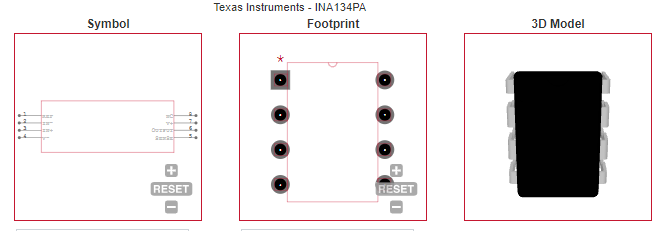

INA134PA ECAD MODELS

INA134PA APPLICATIONS

COUNTRY OF ORIGIN

Malaysia

Obsolete
Mar 07,2024

PARAMETRIC INFO

Type	Differential Amplifier
Number of Elements per Chip	1
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	1@±18V
Minimum CMRR (dB)	74
Minimum CMRR Range (dB)	60 to 75
Maximum Quiescent Current (mA)	2.9@±18V
Typical Output Current (mA)	60@±18V
Maximum Input Resistance (MOhm)	0.05(Typ)@±18V
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	0(Typ)
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Extended Industrial
Minimum Storage Temperature (°C)	-55
Maximum Storage Temperature (°C)	125
Power Supply Type	Dual
Maximum Supply Voltage Range (V)	30 to 50
Minimum Dual Supply Voltage (V)	±4
Typical Dual Supply Voltage (V)	±5\|±9\|±12\|±15
Maximum Dual Supply Voltage (V)	±18
Maximum Operating Supply Voltage (V)	±18

Supplier Package	PDIP
Basic Package Type	Through Hole
Pin Count	8
Lead Shape	Through Hole
PCB	8
Tab	N/R
Pin Pitch (mm)	2.54
Package Length (mm)	10.16(Max)
Package Width (mm)	6.6(Max)
Package Height (mm)	5.08(Max) - 0.51(Min)
Package Diameter (mm)	N/R
Package Overall Length (mm)	10.16(Max)
Package Overall Width (mm)	10.92(Max)
Package Overall Height (mm)	5.08(Max)
Seated Plane Height (mm)	5.08(Max)
Mounting	Through Hole
Package Material	Plastic
Package Description	Plastic Dual In Line Package
Package Family Name	DIP
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	N/R
Maximum Reflow Temperature (°C)	N/R
Reflow Solder Time (Sec)	N/R
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/A
Wave Solder Time (Sec)	N/A
Lead Finish(Plating)	Au
Under Plating Material	Pd over Ni
Terminal Base Material	Cu Alloy

Packaging	Tube
Quantity Of Packaging	50
Packaging Document	Link to Datasheet

• AUDIO DIFFERENTIAL LINE RECEIVER

• SUMMING AMPLIFIER

• UNITY-GAIN INVERTING AMPLIFIER

• PSUEDOGROUND GENERATOR

• INSTRUMENTATION BUILDING BLOCK

• CURRENT SHUNT MONITOR

• VOLTAGE-CONTROLLED CURRENT SOURCE

• GROUND LOOP ELIMINATOR
