• High common-mode voltage:
– 40 V at VS = 5 V
– ±100 V at VS = ±15 V
|
• Differential gain = 0.1 V/V TO 100 V/V:
– Set with External Resistors
|
• Low quiescent current: 570 µA
|
• Wide supply range:
– Single Supply: 4.5 V to 36 V
– Dual Supplies: ±2.25 V to ±18 V
|
• Low gain error: 0.025%
|
| • High common-mode rejection: 80 dB
|
|
| CATALOG |
INA146UA/2K5 COUNTRY OF ORIGIN
|
INA146UA/2K5 PARAMETRIC INFO
|
INA146UA/2K5 PACKAGE INFO
|
INA146UA/2K5 MANUFACTURING INFO
|
INA146UA/2K5 PACKAGING INFO
|
INA146UA/2K5 ECAD MODELS
|
INA146UA/2K5 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
| Thailand |
| Philippines |
| China |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Type |
Differential Amplifier |
| Number of Elements per Chip |
2 |
| Number of Channels per Chip |
1 |
| Maximum Input Offset Voltage (mV) |
10@5V |
| Maximum Input Bias Current (uA) |
0.05@5V |
| Minimum CMRR (dB) |
70 |
| Maximum Quiescent Current (mA) |
0.7@±18V |
| Minimum CMRR Range (dB) |
60 to 75 |
| Maximum Input Resistance (MOhm) |
0.11(Typ)@5V |
| Maximum Voltage Gain Range (dB) |
35 to 50 |
| Maximum Voltage Gain (dB) |
40(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Extended Industrial |
| Power Supply Type |
Single|Dual |
| Maximum Supply Voltage Range (V) |
30 to 50 |
| Minimum Single Supply Voltage (V) |
4.5 |
| Typical Single Supply Voltage (V) |
5|9|12|15|18|24|28 |
| Maximum Single Supply Voltage (V) |
36 |
| Minimum Dual Supply Voltage (V) |
±2.25 |
| Typical Dual Supply Voltage (V) |
±3|±5|±9|±12|±15 |
| Maximum Dual Supply Voltage (V) |
±18 |
| Maximum Operating Supply Voltage (V) |
±18|36 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

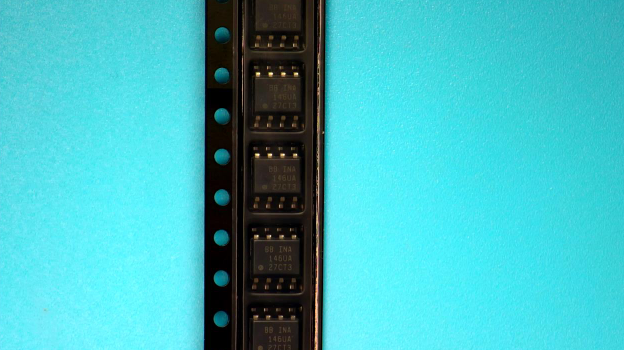

PACKAGING INFO
|
| Packaging Suffix |
2K5 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

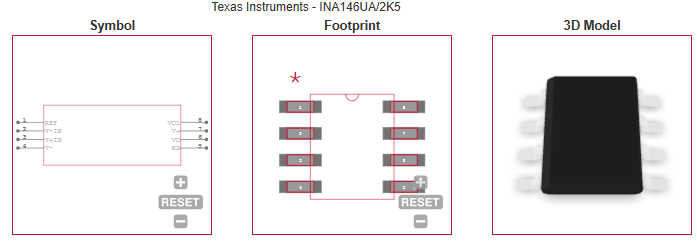

ECAD MODELS
|
|
|
APPLICATIONS
|
• Battery cell formation & test equipment
|
| • AC drive control module
|
• HVAC controller
|
• Professional audio amplifier (rack mount)
|
