• Complete Unipolar High-Side Current
Measurement Circuit
|
• Wide Supply and Common-Mode Range
|
• INA138: 2.7 V to 36 V
|
• INA168: 2.7 V to 60 V
|
• Independent Supply and Input Common-Mode
Voltages
|
• Single Resistor Gain Set
|
• Low Quiescent Current (25 µA Typical)
|
• Wide Temperature Range: –40°C to +125°C
|
• 5-Pin SOT-23 Package
|
|
| CATALOG |
INA168NA/3K COUNTRY OF ORIGIN
|
INA168NA/3K PARAMETRIC INFO
|
INA168NA/3K PACKAGE INFO
|
INA168NA/3K MANUFACTURING INFO
|
INA168NA/3K PACKAGING INFO
|
INA168NA/3K ECAD MODELS
|
INA168NA/3K APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Malaysia
|
Philippines
|
Taiwan (Province of China)
|
Thailand
|
United States of America
|
|
PARAMETRIC INFO
|
| Type |
Current Sense Amplifier |
| Number of Elements per Chip |
1 |
| Number of Channels per Chip |
1 |
| Maximum Input Offset Voltage (mV) |
1@5V |
| Maximum Input Bias Current (uA) |
2(Typ)@5V |
| Minimum CMRR (dB) |
100 |
| Maximum Quiescent Current (mA) |
0.045@5V |
| Minimum CMRR Range (dB) |
95 to 105 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single |
| Maximum Supply Voltage Range (V) |
30 to 50 |
| Minimum Single Supply Voltage (V) |
2.7 |
| Typical Single Supply Voltage (V) |
3|5|9|12|15|18|24|28 |
| Maximum Single Supply Voltage (V) |
36 |
| Maximum Operating Supply Voltage (V) |
36 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

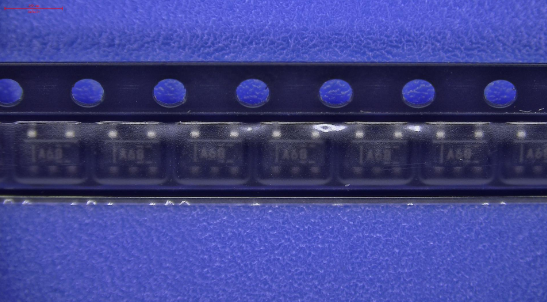

PACKAGING INFO
|
| Packaging Suffix |
/3K |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|

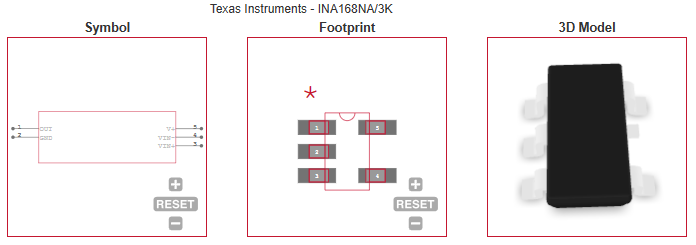

ECAD MODELS
|
|
|
APPLICATIONS
|
• Current Shunt Measurement:
– Telephone, Computers
|
| • Portable and Battery-Backup Systems
|
| • Battery Chargers |
| • Power Management |
• Cell Phones
|
• Precision Current Source
|
|
| |
