• AEC-Q100 qualified for automotive applications:– Temperature grade 1: –40°C to +125°C, TA
|
• Low input bias currents, IIB: 500 pA (typical)
|
• Bidirectional current sensing capability
|
|
| CATALOG |
INA186A3QDCKRQ1 COUNTRY OF ORIGIN
|
INA186A3QDCKRQ1 PARAMETRIC INFO
|
INA186A3QDCKRQ1 PACKAGE INFO
|
INA186A3QDCKRQ1 MANUFACTURING INFO
|
INA186A3QDCKRQ1 PACKAGING INFO
|
INA186A3QDCKRQ1 ECAD MODELS
|
INA186A3QDCKRQ1 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Current Sense Amplifier |
| Rail to Rail |
Rail to Rail Output |
| Number of Elements per Chip |
1 |
| Number of Channels per Chip |
1 |
| Minimum PSRR (dB) |
120(Typ) |
| Maximum Input Offset Voltage (mV) |
0.05@5V |
| Maximum Input Bias Current (uA) |
0.003@5V |
| Minimum CMRR (dB) |
120 |
| Maximum Quiescent Current (mA) |
0.065@1.8V |
| Minimum CMRR Range (dB) |
120 to 130 |
| Maximum Voltage Gain Range (dB) |
35 to 50 |
| Maximum Voltage Gain (dB) |
40(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Automotive |
| Power Supply Type |
Single |
| Maximum Supply Voltage Range (V) |
5 to 7 |
| Minimum Single Supply Voltage (V) |
1.7 |
| Typical Single Supply Voltage (V) |
3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
|
|
PACKAGE INFO
|
| Supplier Package |
SC-70 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2.15(Max) |
| Package Width (mm) |
1.4(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
|
|

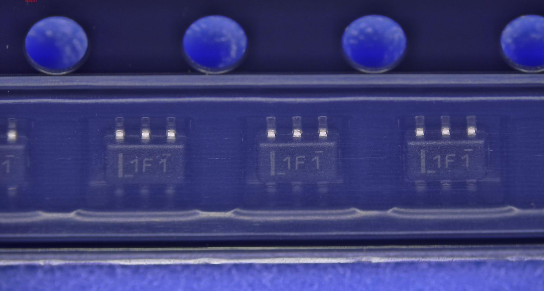

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|

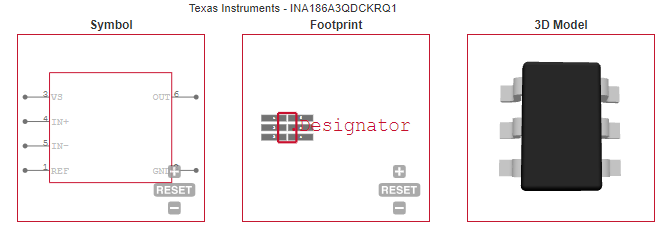

ECAD MODELS
|
|
|
APPLICATIONS
|
• Body control module (BCM)
|
| • Telematics control unit |
| • Emergency call (eCall) |
| • 12-V battery management system (BMS) |
| • Automotive head unit |
| |
