• Wide Common-Mode Voltage:−16 V to +80 V
|
• Low Error: 3.0% Over Temp (maximum)
|
• Bandwidth: Up to 500 kHz
|
| • Three Transfer Functions Available: 20 V/V, 50V/V, and 100 V/V
|
| • Quiescent Current: 900 μA (maximum) |
| • Complete Current Sense Solution |
|
| CATALOG |
| INA194AIDBVT COUNTRY OF ORIGIN |
INA194AIDBVT PARAMETRIC INFO
|
INA194AIDBVT PACKAGE INFO
|
INA194AIDBVT MANUFACTURING INFO
|
INA194AIDBVT PACKAGING INFO
|
INA194AIDBVT EACD MODELS
|
| INA194AIDBVT APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Philippines |
| Thailand |
| China |
| Taiwan (Province of China) |
| United States of America |
|
PARAMETRIC INFO
|
| type |
Current Shunt Monitor |
| Number of Elements per Chip |
2 |
| Number of Channels per Chip |
1 |
| Minimum PSRR (dB) |
106.02(Typ) |
| Maximum Input Offset Voltage (mV) |
2@12V |
| Maximum Input Bias Current (uA) |
16@12V |
| Minimum CMRR (dB) |
80 |
| Maximum Quiescent Current (mA) |
0.9@12V |
| Minimum CMRR Range (dB) |
75 to 85 |
| Typical Slew Rate (V/us) |
1@12V |
| Maximum Voltage Gain Range (dB) |
<35 |
| Maximum Voltage Gain (dB) |
33.98(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Rating |
Extended |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single |
| Maximum Supply Voltage Range (V) |
18 to 20 |
| Minimum Single Supply Voltage (V) |
2.7 |
| Typical Single Supply Voltage (V) |
12 |
| Maximum Single Supply Voltage (V) |
18 |
| Maximum Operating Supply Voltage (V) |
18 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-23 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
5 |
| Pin shape |
Gull-wing |
| PCB |
5 |
| ears |
N/R |
| Pin spacing (mm) |
0.95 |
| Package length (mm) |
3.05(Max) |
| Package width (mm) |
1.75(Max) |
| Package height (mm) |
1.1 |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Mounting surface height (mm) |
1.45(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
MO-178 |
|
|
MANUFACTURING INFO
|
| MSL |
1|2 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
260 |
| Wave soldering time (seconds) |
4 |
| Lead Finish(Plating) |
Matt Sn|Au |
| Plating materials |
N/A|Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
not applicable |
|
|

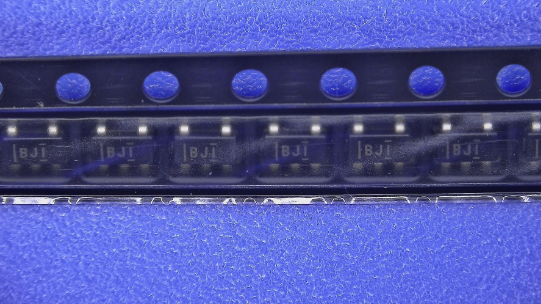

PACKAGING INFO
|
| Packaging Suffix |
T |
| Package |
Tape and reel packaging |
| Packing quantity |
250 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
9 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| packaging type file |
Link to datasheet |
|
|

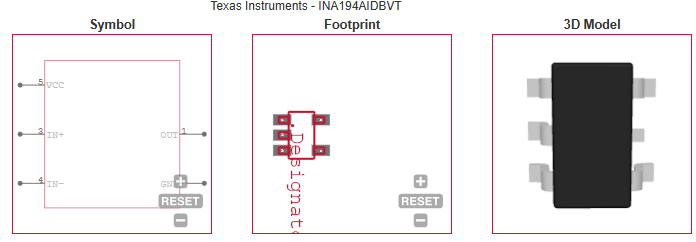

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Welding Equipment |
| • Notebook Computers |
| • Cell Phones |
| • Telecom Equipment |
| • Automotive |
| • Power Management |
| • Battery Chargers |
| |
