• Senses Bus Voltages from 0 to 26 V
|
• Reports Current, Voltage, and Power
|
• 16 Programmable Addresses
|
• High Accuracy: 0.5% (Maximum) Over Temperature (INA219B)
|
• Filtering Options
|
| • Calibration Registers |
| • SOT23-8 and SOIC-8 Packages |
|
| CATALOG |
INA219AIDCNR COUNTRY OF ORIGIN
|
INA219AIDCNR PARAMETRIC INFO
|
INA219AIDCNR PACKAGE INFO
|
INA219AIDCNR MANUFACTURING INFO
|
INA219AIDCNR PACKAGING INFO
|
INA219AIDCNR ECAD MODELS
|
INA219AIDCNR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Philippines |
| Mexico |
| Thailand |
|
PARAMETRIC INFO
|
| Type |
Monitor |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Supply Voltage (V) |
3 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Output Current (A) |
10(Max) |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.3(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178BA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

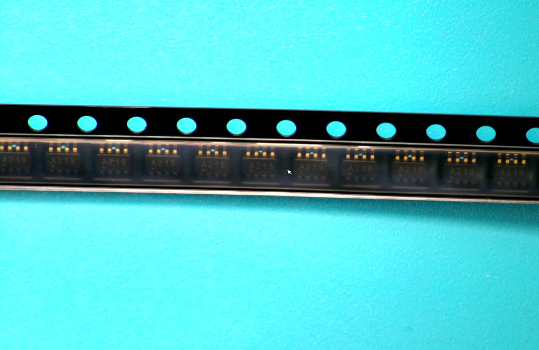

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|

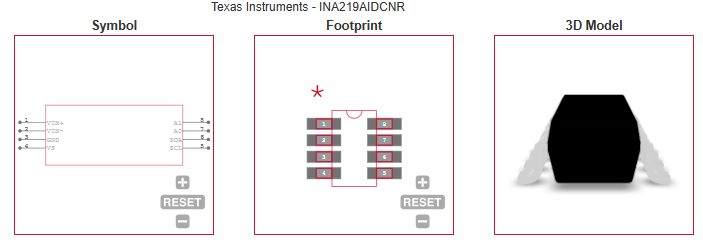

ECAD MODELS
|
|
|
APPLICATIONS
|
• Servers
|
| • Telecom Equipment |
• Notebook Computers
|
• Power Management
|
| • Battery Chargers
|
| • Welding Equipment |
| • Power Supplies |
| • Test Equipment |
| |
| |
