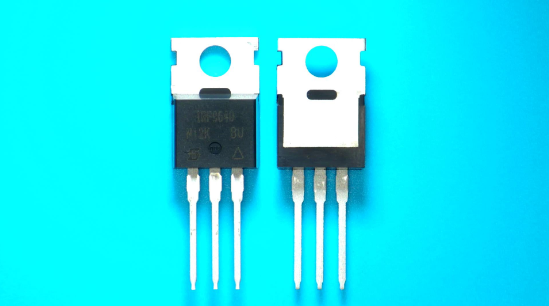

IRF9640PBF Vishay Semiconductors MOSFET P-CH 200V 11A TO-220AB

label:
2023/10/24 331


• Dynamic dV/dt rating
• Repetitive avalanche rated
• P-channel
• Fast switching
• Ease of paralleling
• Simple drive requirements
• Material categorization: for definitions of compliance please see


CATALOG
IRF9640PBF COUNTRY OF ORIGIN
IRF9640PBF PARAMETRIC INFO
IRF9640PBF PACKAGE INFO
IRF9640PBF MANUFACTURING INFO
IRF9640PBF ECAD MODELS


COUNTRY OF ORIGIN
China
Japan
Taiwan (Province of China)


PARAMETRIC INFO
Channel Type P
Channel Mode Enhancement
Configuration Single
Maximum Drain Source Voltage (V) 200
Maximum Continuous Drain Current (A) 11
Maximum Absolute Continuous Drain Current (A) 11
Maximum Gate Source Voltage (V) ±20
Maximum Drain Source Resistance (mOhm) 500@10V
Typical Gate Charge @ Vgs (nC) 44(Max)@10V
Typical Gate Charge @ 10V (nC) 44(Max)
Maximum Power Dissipation (mW) 125000
Category Power MOSFET
Typical Input Capacitance @ Vds (pF) 1200@25V
Typical Turn-On Delay Time (ns) 14
Typical Turn-Off Delay Time (ns) 39
Typical Fall Time (ns) 38
Typical Rise Time (ns) 43
Number of Elements per Chip 1
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150

PACKAGE INFO
Supplier Package TO-220AB
Basic Package Type Through Hole
Pin Count 3
Lead Shape Through Hole
PCB 3
Tab Tab
Pin Pitch (mm) 2.67(Max)
Package Length (mm) 10.41(Max)
Package Width (mm) 4.7(Max)
Package Height (mm) 9.01(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 10.41(Max)
Package Overall Width (mm) 4.7(Max)
Package Overall Height (mm) 19.14(Max)
Seated Plane Height (mm) 19.14(Max)
Mounting Through Hole
Package Material Plastic
Package Description Transistor Outline Package
Package Family Name TO
Jedec TO-220AB
Package Outline Link to Datasheet

MANUFACTURING INFO
MSL N/R
Maximum Reflow Temperature (°C) N/R
Reflow Solder Time (Sec) N/R
Maximum Wave Temperature (°C) 300
Wave Solder Time (Sec) 10
Lead Finish(Plating) Matte Sn
Under Plating Material N/A
Terminal Base Material Cu

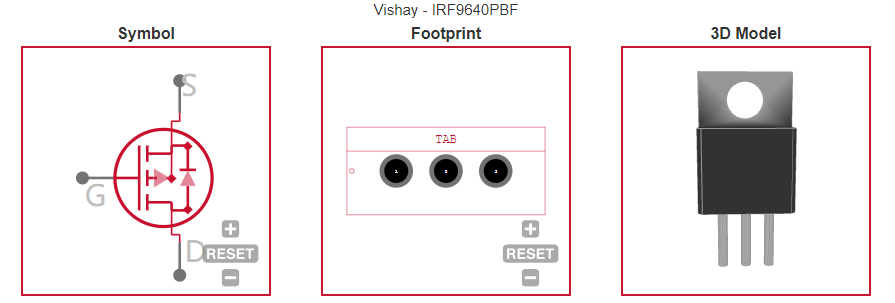

ECAD MODELS
