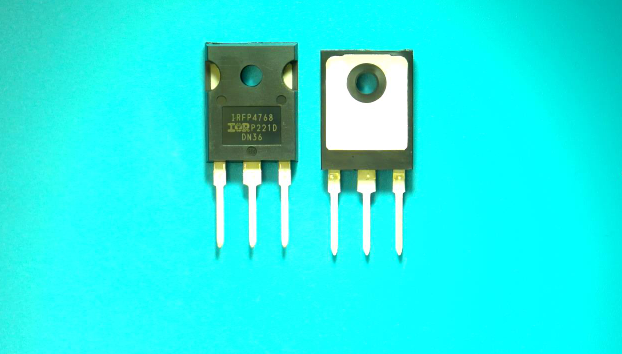

IRFP4768PbF Infineon Technologies MOSFET N-CH 250V 93A TO-247AC

label:
2024/02/18 418



CATALOG
IRFP4768PbF COUNTRY OF ORIGIN
IRFP4768PbF PARAMETRIC INFO
IRFP4768PbF PACKAGE INFO
IRFP4768PbF MANUFACTURING INFO
IRFP4768PbF PACKAGING INFO
IRFP4768PbF APPLICATIONS


COUNTRY OF ORIGIN
Taiwan (Province of China)
Mexico
China
Germany


PARAMETRIC INFO
Channel Type N
Channel Mode Enhancement
Configuration Single
Maximum Drain Source Voltage (V) 250
Maximum Continuous Drain Current (A) 93
Maximum Absolute Continuous Drain Current (A) 93
Maximum Gate Source Voltage (V) ±20
Maximum Drain Source Resistance (mOhm) 17.5@10V
Typical Gate Charge @ Vgs (nC) 180@10V
Typical Gate Charge @ 10V (nC) 180
Maximum Power Dissipation (mW) 520000
Process Technology HEXFET
Category Power MOSFET
Typical Input Capacitance @ Vds (pF) 10880@50V
Typical Turn-On Delay Time (ns) 36
Typical Turn-Off Delay Time (ns) 57
Typical Fall Time (ns) 110
Typical Rise Time (ns) 160
Maximum Gate Threshold Voltage (V) 5
Number of Elements per Chip 1
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 175


PACKAGE INFO
Supplier Package TO-247AC
Basic package type Through Hole
Number of pins 3
Lead Shape Through Hole
PCB 3
ear piece ear piece
Pin spacing (mm) 5.45
Package length (mm) 15.87(Max)
Package width (mm) 5.31(Max)
Package height (mm) 20.7(Max)
Package diameter (mm) N/R
Mounting surface height (mm) 24.99(Max)
Install Through Hole
Packaging material Plastic
Packaging instructions Transistor Outline Package
Package series name TO-247
JEDEC TO-247AC
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL N/R
Maximum reflow temperature (°C) 260
Reflow soldering time (seconds) not applicable
Reflow temperature source Link to datasheet
Maximum wave soldering temperature (°C) 300
Wave soldering time (seconds) 10
Wave soldering temperature source Link to datasheet
Lead Finish(Plating) Matt Sn
Plating materials Ni
Terminal Base Material Cu
Shelf Life Period 3 Years


PACKAGING INFO
Package Tube
Packing quantity 400


APPLICATIONS
• High Efficiency Synchronous Rectification in SMPS
• Uninterruptible Power Supply
• High Speed Power Switching
• Hard Switched and High Frequency Circuits
