• IEC61000 ESD protection on RS-485 inputs . . . . . . . ±16.5kV- Class 3 ESD level on all other pins . . . . . . . . . . .>5kV HBM
|
• Pb-free (RoHS compliant)
|
• Wide supply range . . . . . . . . . . . . . . . . . . . . . . . . . 3.0V to 5.5V
|
• Specified for +125°C operation
|
• Logic supply pin (VL) eases operation in mixed supply systems (ISL3282E, ISL3284E only)
|
• Full fail-safe (open, short, terminated/undriven)
|
• True 1/8 unit load allows up to 256 devices on the bus
|
• High data rates. . . . . . . . . . . . . . . . . . . . . . . . . . up to 20Mbps
|
• Low quiescent supply current. . . . . . . . . . . . . . . 500µA (max)- Very low shutdown supply current . . . . . . . . . . 20µA (max)
|
• -7V to +12V common mode input voltage range
|
• Tri-statable Rx available (active low or high EN input)
|
• 5V tolerant logic inputs when VCC ≤ 5V
|
|
| CATALOG |
ISL3280EIHZ-T COUNTRY OF ORIGIN
|
ISL3280EIHZ-T PARAMETRIC INFO
|
ISL3280EIHZ-T PACKAGE INFO
|
ISL3280EIHZ-T MANUFACTURING INFO
|
ISL3280EIHZ-T PACKAGING INFO
|
ISL3280EIHZ-T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Function |
Line Receiver |
| Number of Receivers |
1 |
| Data Transmission Topology |
Multidrop|Multipoint |
| Receiver Signal Type |
Differential |
| Charge Pump |
No |
| Number of External Capacitors |
4 |
| External Capacitor Capacitance (uF) |
0.1 |
| Power Down Mode |
Shutdown |
| Typical Shutdown Current (uA) |
20(Max) |
| Fail Safe |
Open/Short |
| Receiver Communication Type |
RS-422|RS-485 |
| Input Logic Level |
CMOS |
| Output Logic Level |
CMOS |
| Interface Standards |
RS-422|RS-485 |
| Number of Receiver Enables |
1 |
| Number of Receivers per Line |
10@RS-422|256@RS-485 |
| Data Rate |
30.24Mbps |
| Driving Mode |
3-State |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Power Supply Type |
Single |
| Typical Single Supply Voltage (V) |
3.3|5 |
| Minimum Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
0.5 |
| Isolation |
No |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3(Max) |
| Package Width (mm) |
1.7(Max) |
| Package Height (mm) |
1.3(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
IPC-1752 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

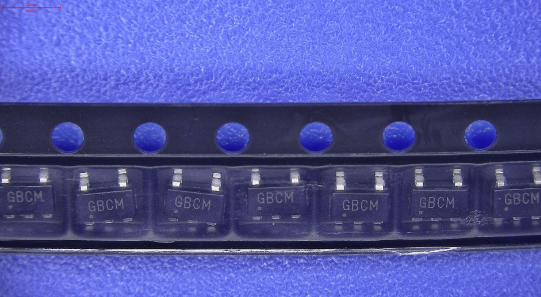

| PACKAGING INFO |
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000|3000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
|
|
| APPLICATIONS |
| • Clock distribution |
| • High node count systems |
| • Space constrained systems |
| • Security camera networks |
| • Building environmental control/lighting systems |
| • Industrial/process control networks |
| |
