• Complete Switch Mode Power Supply
|
• 10A DC Output Current, 17A Peak Output Current
|
• Adjustable +0.6V to +5V Output Range
|
• Simple Voltage Mode Control
|
• Fixed 600kHz Switching Frequency
|
• Fast Transient Response
|
• Enable Function Option
|
|
| CATALOG |
ISL8201MIRZ LIFECYCLE
|
ISL8201MIRZ PARAMETRIC INFO
|
ISL8201MIRZ PACKAGE INFO
|
ISL8201MIRZ MANUFACTURING INFO
|
ISL8201MIRZ PACKAGING INFO
|
ISL8201MIRZ ECAD MODELS
|
ISL8201MIRZ APPLICATIONS
|
|
LIFECYCLE
|
Obsolete
Feb 28,2022
|
|
PARAMETRIC INFO
|
| Type |
Step Down |
| Number of Outputs |
1 |
| Output Voltage (V) |
0.6 to 5 |
| Maximum Output Current (A) |
10 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Switching Regulator |
Yes |
| Minimum Input Voltage (V) |
1 |
| Maximum Input Voltage (V) |
20 |
| Output Type |
Adjustable |
| Efficiency (%) |
95 |
| Load Regulation |
0.5%(Typ) |
| Line Regulation |
0.1%(Typ) |
| Maximum Switching Frequency (kHz) |
660 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
125 |
| Regulated/Unregulated Output |
Regulated |
|
|

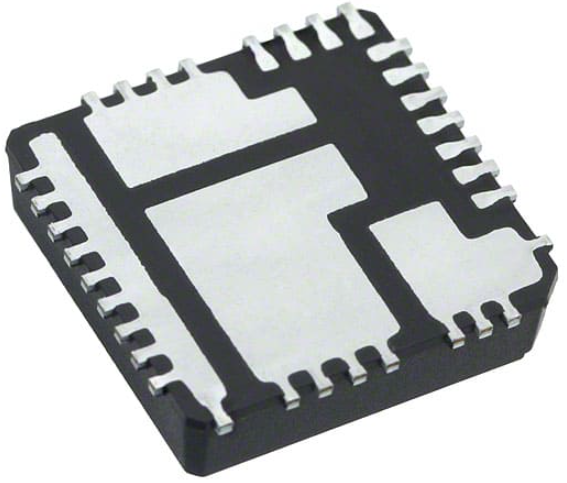

PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
15 |
| Lead Shape |
No Lead |
| PCB |
15 |
| Tab |
N/R |
| Package Length (mm) |
15 |
| Package Width (mm) |
15 |
| Package Height (mm) |
3.5 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
3.5 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
|
|

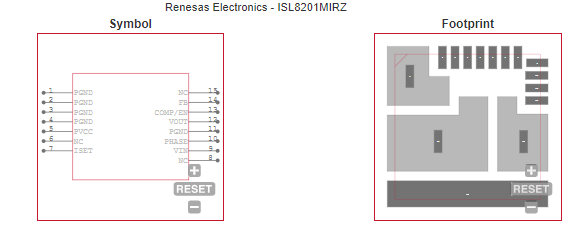

ECAD MODELS
|
 |
|
| APPLICATIONS |
| • Servers |
| • Industrial Equipment |
| • Point of Load Regulation |
| • Other General Purpose Step-Down DC/DC |
| • Telecom and Datacom Applications |
| |
