• Short-circuit protection
|
• Input protection
|
• Overtemperature protection with hysteresis
|
| • Overload protection
|
| • Overvoltage protection |
| • Switching inductive load |
| • Clamp of negative output voltage with inductive loads |
| • Undervoltage shutdown |
| • Maximum current internally limited |
| • Electrostatic discharge (ESD) protection |
| • Reverse battery protection1 |
|
| CATALOG |
| ISP452HUMA1 COUNTRY OF ORIGIN |
ISP452HUMA1 PARAMETRIC INFO
|
ISP452HUMA1 PACKAGE INFO
|
ISP452HUMA1 MANUFACTURING INFO
|
ISP452HUMA1 PACKAGING INFO
|
| ISP452HUMA1 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Austria |
| Malaysia |
|
PARAMETRIC INFO
|
| type |
High Side |
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Minimum Input Voltage (V) |
-5 |
| Interface Type |
On/Off |
| Maximum Input Voltage (V) |
40 |
| Maximum Output Current (A) |
0.7(Min) |
| Output Type |
N-Channel |
| Minimum Operating Temperature (°C) |
-30 |
| Maximum Operating Temperature (°C) |
85 |
| Input Type |
Non-Inverting |
| Switch On Resistance (mOhm) |
160 |
| Maximum Power Dissipation (mW) |
1800 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-223 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
4 |
| Pin shape |
Gull-wing |
| PCB |
3 |
| ears |
ears |
| Pin spacing (mm) |
2.3 |
| Package length (mm) |
6.5 |
| Package width (mm) |
3.5 |
| Package height (mm) |
1.6 |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
6.5 |
| Package Overall Width (mm) |
7 |
| Package Overall Height (mm) |
1.8(Max) |
| Mounting surface height (mm) |
1.8(Max) |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
TO-261AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

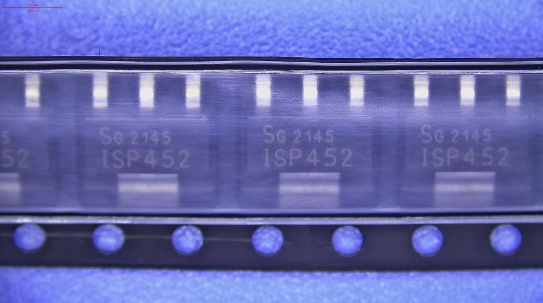

PACKAGING INFO
|
| Package |
Tape and reel packaging |
| Packing quantity |
4000 |
|
|
APPLICATIONS
|
• µC compatible power switch for 12 V DC grounded loads for industrial applications
|
| • All types of resistive, inductive and capacitive loads |
| • Replaces electromechanical relays and discrete circuits |
| |
