• Optimized for Low Conduction Losses
|
• Square RBSOA
|
• High Current Handling Capability
|
• International Standard Packages
|
|
| CATALOG |

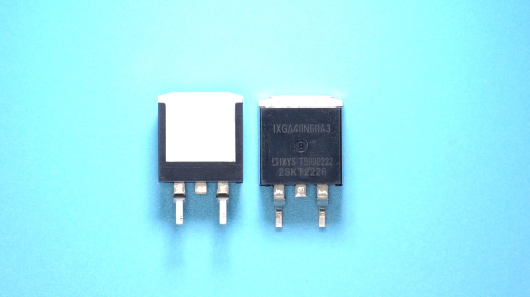

IXGA48N60A3 COUNTRY OF ORIGIN
|
IXGA48N60A3 PARAMETRIC INFO
|
IXGA48N60A3 PACKAGE INFO
|
IXGA48N60A3 MANUFACTURING INFO
|
IXGA48N60A3 PACKAGING INFO
|
IXGA48N60A3 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Korea (Republic of)
|
|
PARAMETRIC INFO
|
| Channel Type |
N |
| Configuration |
Single |
| Maximum Collector-Emitter Voltage (V) |
600 |
| Maximum Continuous Collector Current (A) |
48 |
| Maximum Power Dissipation (W) |
300 |
| Maximum Gate Emitter Voltage (V) |
±20 |
| Typical Collector Emitter Saturation Voltage (V) |
1.18 |
| Maximum Gate Emitter Leakage Current (uA) |
0.1 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
D2PAK |
| Pin Count |
3 |
| PCB |
2 |
| Tab |
Tab |
| Package Length (mm) |
10.41(Max) |
| Package Width (mm) |
9.65(Max) |
| Package Height (mm) |
4.83(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Family Name |
TO-263 |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Document |
Link to Datasheet |
|
|
| APPLICATIONS |
• Power Inverters
|
• UPS
|
• Motor Drives
|
• SMPS
|
| • PFC Circuits |
| • Battery Chargers |
| • Welding Machines |
| • Lamp Ballasts |
| • Inrush Current Protection Circuits |
| |
