KAT-15+ COUNTRY OF ORIGIN
|
KAT-15+ PARAMETRIC INFO
|
KAT-15+ PACKAGE INFO
|
KAT-15+ MANUFACTURING INFO
|
KAT-15+ PACKAGING INFO
|
KAT-15+ APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
Malaysia
|
|
PARAMETRIC INFO
|
| Module/IC Classification |
IC |
| Manufacture Type |
Fixed Attenuator |
| Maximum Attenuation (dB) |
16 |
| Minimum Frequency (GHz) |
0 |
| Maximum Frequency (GHz) |
43.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Typical Attenuation (dB) |
14.6 |
| Maximum VSWR |
1.9 |
| Maximum Input Power |
1.4W |
| Impedance (Ohm) |
50 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
Case MC-1630-1 |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
No Lead |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2 |
| Package Width (mm) |
2 |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2 |
| Package Overall Width (mm) |
2 |
| Package Overall Height (mm) |
1.05(Max) |
| Seated Plane Height (mm) |
1.05(Max) |
| Mounting |
Surface Mount |
| Terminal Width (mm) |
0.25 |
| Package Weight (g) |
0.006 |
| Package Material |
Plastic |
| Package Description |
N/A |
| Package Family Name |
N/A |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

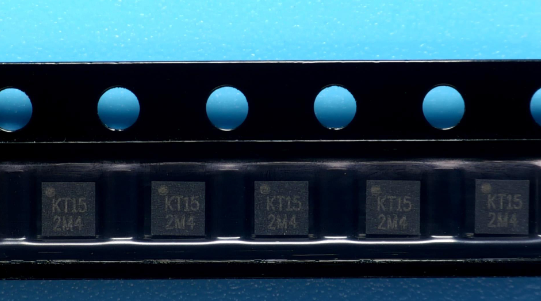

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000|2000|3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• 5G
|
• Test and Measurement
|
• Radar
|
| • Communication |
| • Defense |
| |
