KP235XTMA1 Infineon Technologies IC ANLG BAROMETRIC SNSR DSOF8-16

label:
2023/11/2 234



CATALOG
KP235XTMA1 COUNTRY OF ORIGIN
KP235XTMA1 PARAMETRIC INFO
KP235XTMA1 PACKAGE INFO
KP235XTMA1 MANUFACTURING INFO
KP235XTMA1 PACKAGING INFO
KP235XTMA1 ECAD MODELS


COUNTRY OF ORIGIN
Germany
Malaysia


PARAMETRIC INFO
Device Pressure Type Absolute
Equivalent Overload Pressure Range (psi) 20 to 100
Maximum Operating Supply Voltage (V) 5.5
Maximum Operating Temperature (°C) 125
Maximum Overload Pressure 600kPa
Maximum Storage Temperature (°C) 150
Maximum Supply Current (mA) 10
Minimum Operating Supply Voltage (V) 4.5
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -60
Operating Pressure Range 40kPa to 115kPa
Output Voltage (V) 0.1 to 4.85
Media Air
Response Time (ms) 0.65
Typical Operating Supply Voltage (V) 5
Operating Supply Voltage (V) 5


PACKAGE INFO
Supplier Package DSOF
Pin Count 8
PCB 8
Tab N/R
Pin Pitch (mm) 1.27
Package Length (mm) 7
Package Width (mm) 7
Package Height (mm) 2.8
Package Diameter (mm) N/R
Seated Plane Height (mm) 2.8
Mounting Surface Mount
Package Family Name N/A
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 245
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Au
Under Plating Material Pd over Ni
Terminal Base Material Cu Alloy


PACKAGING INFO

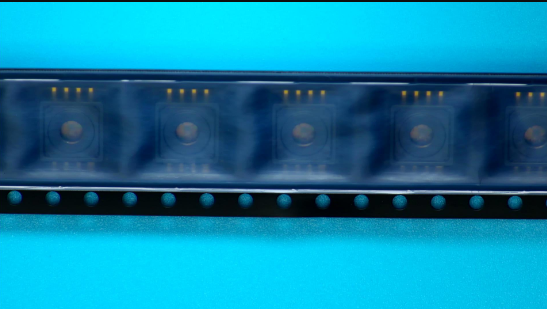

Packaging Tape and Reel
Quantity Of Packaging 1500

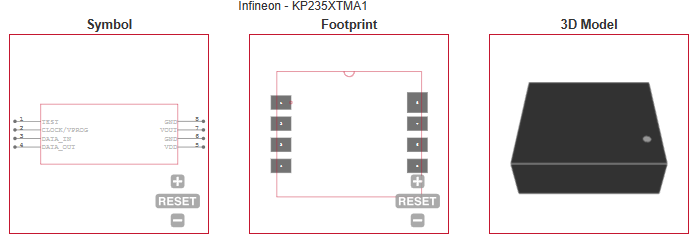

ECAD MODELS
