| · Single-chip 10Base-T/100Base-TX physical layer solution |
| · Fully compliant to IEEE 802.3u standard |
| · Low power CMOS design, power consumption of <180mW |
| · HP auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables with disable and enable option |
| · Robust operation over standard cables |
| · Power down and power saving modes |
| · MII interface support (KSZ8041NL only) |
| · RMII interface support with external 50MHz system clock(KSZ8041NL only) |
| · RMII interface support with 25MHz crystal/clock input and 50MHz reference clock output to MAC (KSZ8041RNL only) |
| · MIIM (MDC/MDIO) management bus to 6.25MHz for rapid PHY register configuration |
| · Interrupt pin option |
| · Programmable LED outputs for link, activity and speed |
| · ESD rating (6kV) |
| · Single power supply (3.3V) |
| · Built-in 1.8V regulator for core |
| · Available in 32-pin 5mm x 5mm QFN package |
|
| CATALOG |
| KSZ8041NL-TR COUNTRY OF ORIGIN |
| KSZ8041NL-TR PARAMETRIC INFO |
| KSZ8041NL-TR PACKAGE INFO |
| KSZ8041NL-TR MANUFACTURING INFO |
| KSZ8041NL-TR PACKAGING INFO |
| KSZ8041NL-TR ECAD MODELS |
| KSZ8041NL-TR FUNCTIONAL BLOCK DIAGRAM |
| KSZ8041NL-TR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| China |
| Taiwan (Province of China) |
| Malaysia |
|
| PARAMETRIC INFO |
| Type |
Ethernet Transceiver |
| Maximum Data Rate |
100Mbps |
| Number of Channels per Chip |
1 |
| PHY Line Side Interface |
No |
| JTAG Support |
No |
| Standard Supported |
10BASE-T|100BASE-TX|IEEE 802.3|IEEE 802.3u |
| Typical Data Rate (Mbps) |
10/100 |
| Integrated CDR |
No |
| Overhead Octet Support |
No |
| Ethernet Speed |
10Mbps/100Mbps |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Supplier Temperature Grade |
Commercial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
| Power Supply Type |
Analog |
| Typical Operating Supply Voltage (V) |
3.3 |
| Minimum Operating Supply Voltage (V) |
3.135 |
| Maximum Operating Supply Voltage (V) |
3.465 |
| Operating Supply Voltage (V) |
3.3 |
| Maximum Supply Current (mA) |
53(Typ) |
|
| |
| PACKAGE INFO |
| Supplier Package |
VQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
32 |
| Lead Shape |
No Lead |
| PCB |
32 |
| Tab |
N/R |
| Package Length (mm) |
5 |
| Package Width (mm) |
5 |
| Package Height (mm) |
0.85(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
N/A |
|
| |
| MANUFACTURING INFO |
| MSL |
1|3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
| |

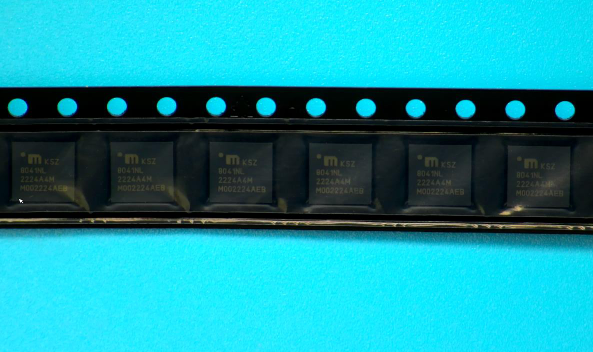

| PACKAGING INFO |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
| |

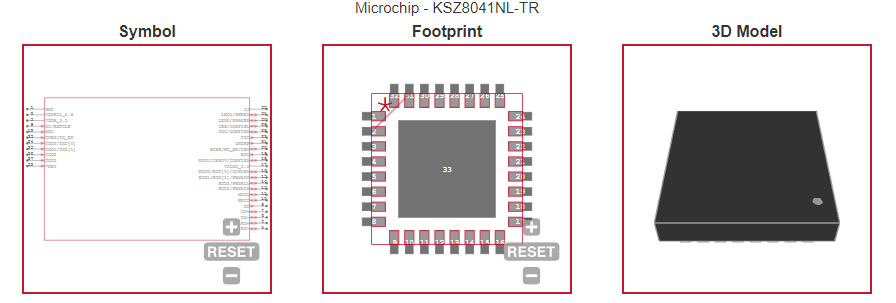

| ECAD MODELS |
 |
|

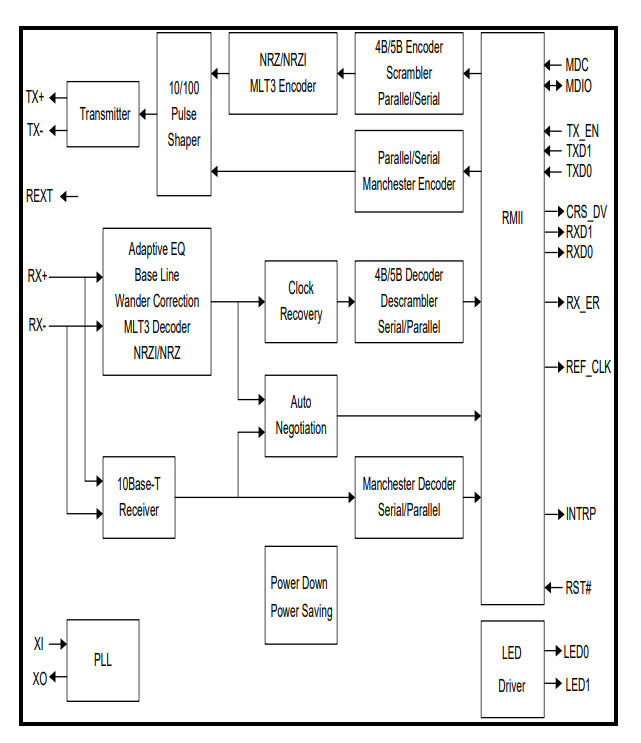

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| ·Printer |
| ·LOM |
| ·Game console |
| ·IPTV |
| ·IP phone |
| ·IP set-top box |
| |
| |
