| CATALOG |
| CY7C65640A-LTXCT COUNTRY OF ORIGIN |
CY7C65640A-LTXCT PARAMETRIC INFO
|
CY7C65640A-LTXCT PACKAGE INFO
|
CY7C65640A-LTXCT MANUFACTURING INFO
|
CY7C65640A-LTXCT PACKAGING INFO
|
CY7C65640A-LTXCT EACD MODELS
|
| CY7C65640A-LTXCT APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Type |
Ethernet Transceiver |
| Maximum Data Rate |
100Mbps |
| Number of Channels per Chip |
2 |
| PHY Line Side Interface |
No |
| JTAG Support |
No |
| Standard Supported |
10BASE-T|100BASE-TX |
| Typical Data Rate (Mbps) |
10/100 |
| Integrated CDR |
No |
| Number of Transceivers |
1 |
| Overhead Octet Support |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Minimum Operating Supply Voltage (V) |
3.135 |
| Maximum Operating Supply Voltage (V) |
3.465 |
| Operating Supply Voltage (V) |
3.3 |
|
|
PACKAGE INFO
|
| Supplier Package |
VQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
32 |
| Lead Shape |
No Lead |
| PCB |
32 |
| Tab |
N/R |
| Package Length (mm) |
5 |
| Package Width (mm) |
5 |
| Package Height (mm) |
0.83 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
490 |
|
|

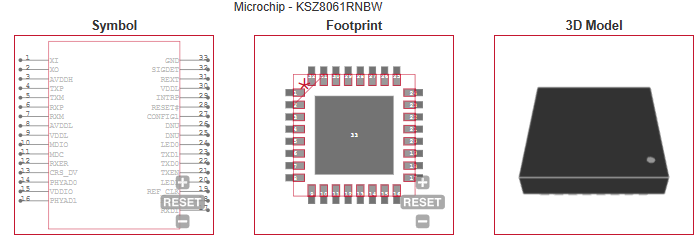

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Industrial Control |
| • Vehicle On-Board Diagnostics (OBD) |
| • Automotive Gateways |
| • Camera and Sensor Networking |
| • Infotainment |
| |
