KSZ8081RNAIA-TR COUNTRY OF ORIGIN
|
KSZ8081RNAIA-TR PARAMETRIC INFO
|
KSZ8081RNAIA-TR PACKAGE INFO
|
KSZ8081RNAIA-TR MANUFACTURING INFO
|
KSZ8081RNAIA-TR PACKAGING INFO
|
KSZ8081RNAIA-TR ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
Taiwan (Province of China)
|
|
PARAMETRIC INFO
|
| Type |
Fast Ethernet Transceiver |
| Maximum Data Rate |
100Mbps |
| Number of Channels per Chip |
1 |
| PHY Line Side Interface |
No |
| JTAG Support |
No |
| Standard Supported |
10BASE-T|100BASE-TX |
| Typical Data Rate (Mbps) |
10/100 |
| Integrated CDR |
No |
| Overhead Octet Support |
No |
| Ethernet Interface Type |
MII/RMII |
| Ethernet Speed |
10Mbps/100Mbps |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
| Power Supply Type |
Analog |
| Typical Operating Supply Voltage (V) |
3.3 |
| Minimum Operating Supply Voltage (V) |
3.135 |
| Maximum Operating Supply Voltage (V) |
3.465 |
| Operating Supply Voltage (V) |
3.3 |
| Maximum Supply Current (mA) |
47(Typ) |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
24 |
| Lead Shape |
No Lead |
| PCB |
24 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
4 |
| Package Width (mm) |
4 |
| Package Height (mm) |
0.83 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.85 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|

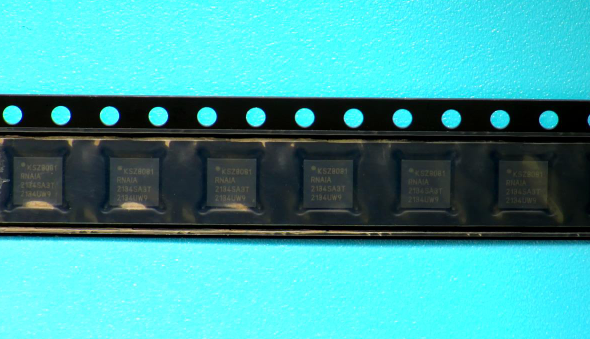

| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
|
|

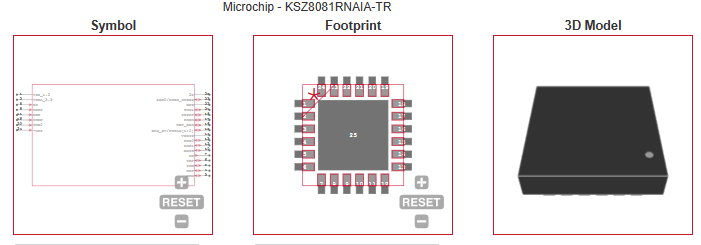

| ECAD MODELS |
|
|
One-stop supplier of IC products
