• Advanced Switch Features
|
• Comprehensive Configuration Register Access
|
• QoS/CoS Packet Prioritization Support
|
• Proven Integrated 3-Port 10/100 Ethernet Switch
|
• Switch Monitoring Features
|
• Low Power Dissipation
|
• Industrial Temperature Range: –40°C to +85°C
|
• Available in a 48-Pin LQFP, Lead-Free Package
|
|
| CATALOG |
LM35DZ/LFT1 COUNTRY OF ORIGIN
|
LM35DZ/LFT1 PARAMETRIC INFO
|
LM35DZ/LFT1 PACKAGE INFO
|
LM35DZ/LFT1 MANUFACTURING INFO
|
LM35DZ/LFT1 PACKAGING INFO
|
LM35DZ/LFT1 ECAD MODELS
|
LM35DZ/LFT1 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Taiwan (Province of China)
|
Malaysia
|
Thailand
|
United States of America
|
|
PARAMETRIC INFO
|
| Number of Primary Switch Ports |
3 |
| PHY/Transceiver Interface |
MII/RMII |
| Maximum Data Rate (Mbps) |
100 |
| Fiber Support |
Yes |
| Internal Memory Buffer Size |
32KB |
| Integrated LED Drivers |
No |
| VLAN Support |
Yes |
| JTAG Support |
No |
| Typical Data Rate (Mbps) |
10/100 |
| Power Supply Type |
Analog|Digital |
| Minimum Operating Supply Voltage |
1.69V|2.5V |
| Typical Operating Supply Voltage |
1.8V|3.3V |
| Maximum Operating Supply Voltage |
1.89V|3.465V |
| Maximum Supply Current (mA) |
112(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|

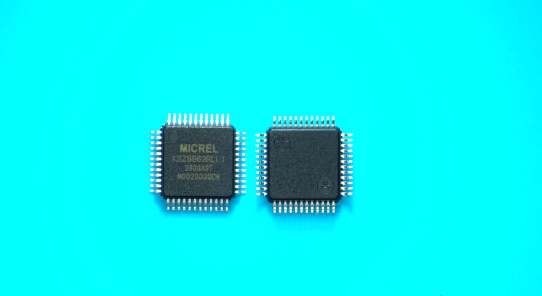

PACKAGE INFO
|
| Supplier Package |
LQFP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
48 |
| Lead Shape |
Gull-wing |
| PCB |
48 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
1.4 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.6(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package |
| Package Family Name |
QFP |
| Jedec |
MS-026BBC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
250 |
|
|

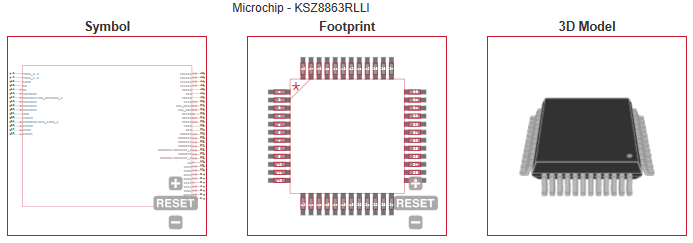

ECAD MODELS
|
|
|
APPLICATIONS
|
• VoIP Phone
|
| • Set-Top/Game Box |
| • Automotive |
| • Industrial Control |
| • IPTV POF |
| • SOHO Residential Gateway |
• Broadband Gateway/Firewall/VPN
|
• Integrated DSL/Cable Modem
|
• Wireless LAN Access Point + Gateway
|
• Standalone 10/100 Switch
|
| |
