• Single-Chip 10/100/1000 Mbps Ethernet Transceiver Suitable for IEEE 802.3 Applications
|
• RGMII Timing Supports On-Chip Delay According
to RGMII Version 2.0, with Programming Options
for External Delay and Making Adjustments and
Corrections to TX and RX Timing Paths
|
• RGMII with 3.3V/2.5V/1.8V Tolerant I/Os
|
• Auto-Negotiation to Automatically Select the
Highest Link-Up Speed (10/100/1000 Mbps) and
Duplex (Half/Full)
|
• On-Chip Termination Resistors for the Differential
Pairs
|
• On-Chip LDO Controller to Support Single 3.3V
Supply Operation – Requires Only One External
FET to Generate 1.2V for the Core
|
|
| CATALOG |
| KSZ9031RNXCC-TR COUNTRY OF ORIGIN |
KSZ9031RNXCC-TR PARAMETRIC INFO
|
KSZ9031RNXCC-TR PACKAGE INFO
|
KSZ9031RNXCC-TR MANUFACTURING INFO
|
KSZ9031RNXCC-TR PACKAGING INFO
|
KSZ9031RNXCC-TR ECAD MODELS
|
KSZ9031RNXCC-TR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| China |
Taiwan (Province of China)
|
Thailand
|
|
PARAMETRIC INFO
|
| Type |
Gigabit Ethernet Transceiver |
| Maximum Data Rate |
1Gbps |
| Number of Channels per Chip |
1 |
| PHY Line Side Interface |
No |
| JTAG Support |
No |
| Standard Supported |
10BASE-T|100BASE-TX|1000BASE-T|IEEE 802.3 |
| Typical Data Rate (Mbps) |
10/100/1000 |
| Integrated CDR |
No |
| Overhead Octet Support |
No |
| Ethernet Interface Type |
RGMII |
| Ethernet Speed |
10Mbps/100Mbps/1000Mbps |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Supplier Temperature Grade |
Commercial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
| Power Supply Type |
Analog|Digital |
| Typical Operating Supply Voltage (V) |
1.8|2.5|3.3 |
| Minimum Operating Supply Voltage (V) |
1.14|1.71|2.375|3.135 |
| Maximum Operating Supply Voltage (V) |
1.38|1.89|2.625|3.465 |
| Operating Supply Voltage (V) |
1.8|2.5|3.3 |
| Maximum Supply Current (mA) |
221(Typ) |
|
|
PACKAGE INFO
|
| Supplier Package |
VQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
48 |
| Lead Shape |
No Lead |
| PCB |
48 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
0.85(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
7 |
| Package Overall Width (mm) |
7 |
| Package Overall Height (mm) |
0.85 |
| Seated Plane Height (mm) |
0.85 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Lead Finish(Plating) |
Matte Sn annealed |
|
|

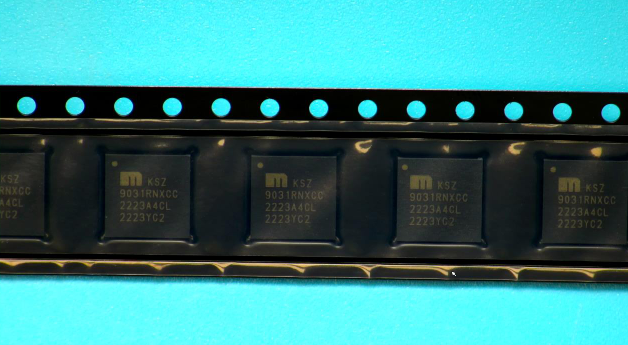

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|

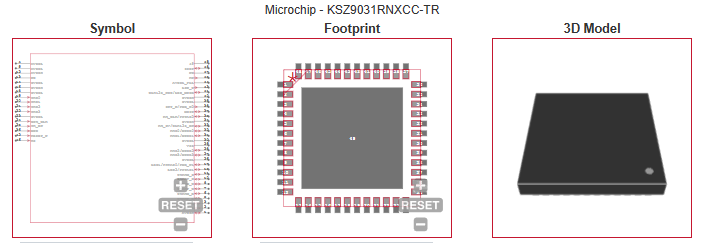

ECAD MODELS
|
|
|
APPLICATIONS
|
• Laser/Network Printer
|
| • Network Attached Storage (NAS) |
• Network Server
|
• Gigabit LAN on Motherboard (GLOM)
|
• Broadband Gateway
|
• Gigabit SOHO/SMB Router
|
• IPTV
|
• IP Set-Top Box
|
• Game Console
|
• Triple-Play (Data, Voice, Video) Media Center
|
• Industrial Control
|
• Automotive In-Vehicle Networking
|
| |
