| • AEC-Q100 qualified |
| • ECOPACK®: lead free and RoHS compliant |
| • Operating DC supply voltage range 5 V - 28 V
|
| • Transient supply voltage up to 40 V |
| • Extremely low quiescent current in standby |
| • High precision standby output voltage 5V±1% |
| • Output current capability up to 100 mAV |
| • Very low dropout voltage less than 0.5 V |
| • Reset circuit sensing the output voltage |
| • Programmable reset pulse delay with external
capacitor |
| • Voltage sense comparator |
| • Thermal shutdown and short circuit protections |
|
| CATALOG |
| L4949EDTR-E COUNTRY OF ORIGIN |
| L4949EDTR-E PARAMETRIC INFO |
| L4949EDTR-E PACKAGE INFO |
| L4949EDTR-E MANUFACTURING INFO |
| L4949EDTR-E PACKAGING INFO |
| L4949EDTR-E ECAD MODELS |
| L4949EDTR-E FUMCTONAL BLOCK DIAGRAM |
|
| COUNTRY OF ORIGIN |
| China |
| Morocco |
| United States of America |
|
| PARAMETRIC INFO |
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
200°C/W |
| Polarity |
Positive |
| Special Features |
Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation |
30mV |
| Line Regulation |
20mV |
| Maximum Quiescent Current (mA) |
0.3 |
| Maximum Dropout Voltage @ Current (V) |
0.25@10mA|0.4@50mA|0.5@100mA |
| Minimum Input Voltage (V) |
6 |
| Maximum Input Voltage (V) |
28 |
| Output Voltage (V) |
5 |
| Typical Quiescent Current (mA) |
0.2 |
| Typical Dropout Voltage @ Current (V) |
0.1@10mA|0.2@50mA|0.3@100mA |
| Reference Voltage (V) |
1.23(Typ) |
| Accuracy (%) |
±1 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
| PACKAGE INFO |
| Supplier Package |
SO N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.65(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|

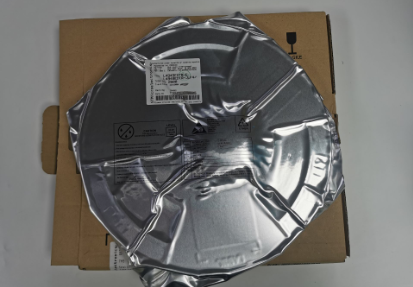

| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|

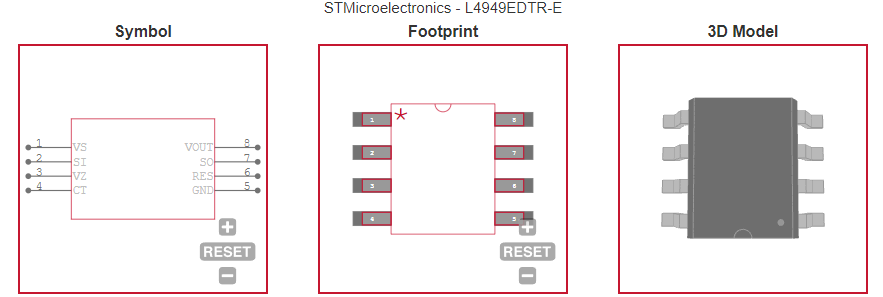

| ECAD MODELS |
 |
|

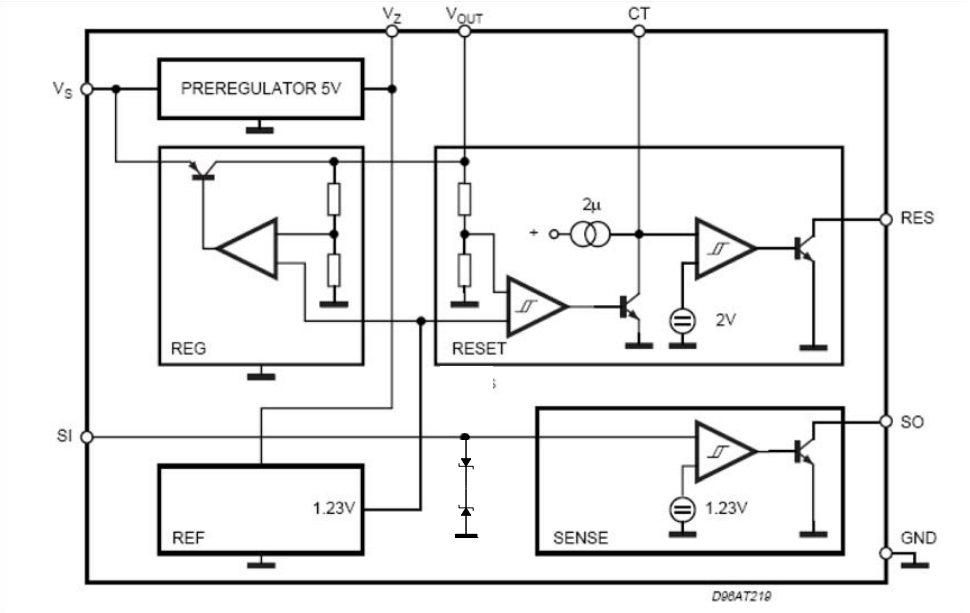

| FUMCTONAL BLOCK DIAGRAM |
 |
|
